Home > Catalog > AGM RattlerV3 25-384 Thermal Rifle Scope

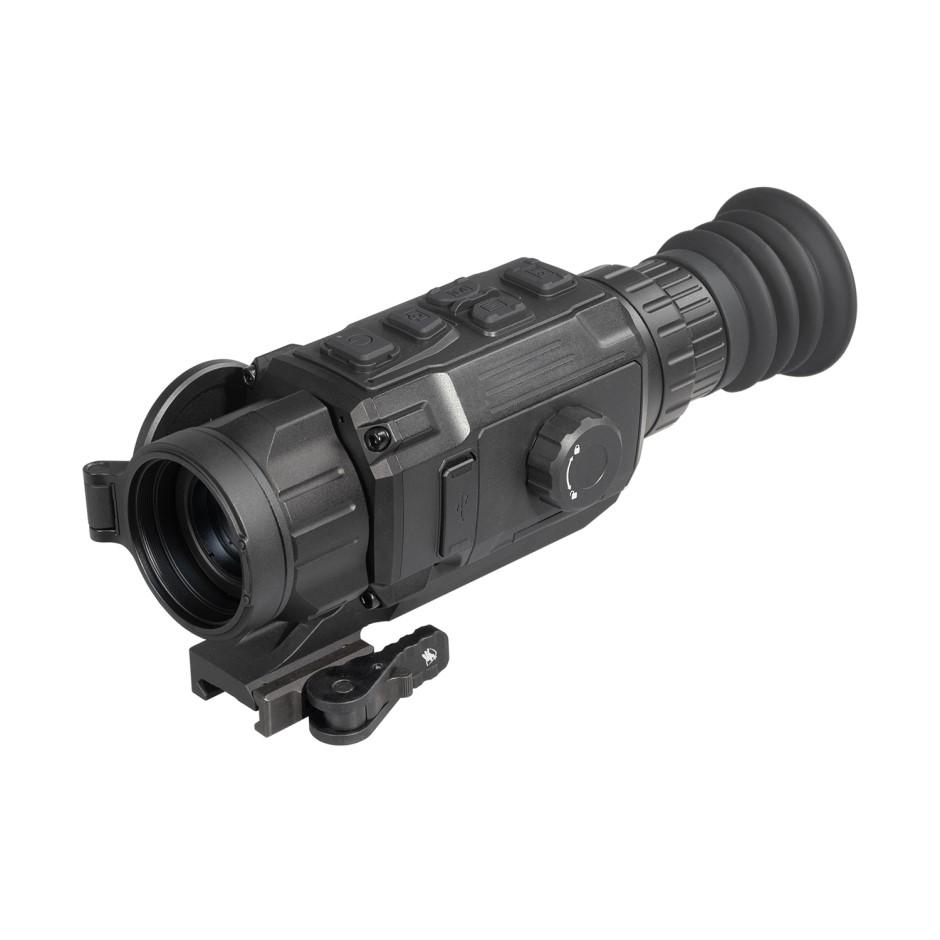

AGM RattlerV3 25-384 Thermal Rifle Scope

ITEM NUMBER:

AXRATT25384V3

UPC:

810164393920

BRAND:

AGM

MFG PRODUCT #:

RATT25-384-V3

SPECIFICATIONS

BATTERY COUNT:

BATTERY RUN TIME:

7 HR

BATTERY TYPE:

REPLACEABLE AND RECHARGEABLE LI-ION BATTERY

BRAND:

AGM

BRAND FAMILY:

RATTLERV3

CA PROP 65:

YES

COLOR:

BLACK

CONDITION:

NEW

OPTICS CLASS:

THERMAL IMAGING

OPTICS MOUNTING SYSTEM:

ADM 2120

OPTICS TYPE:

THERMAL RIFLE SCOPE

THERMAL CORE:

UNCOOLED VOX

THERMAL DETECTOR TYPE:

12UM VOX UNCOOLED FOCAL PLANE ARRAY

THERMAL DIOPTER ADJ:

-4/+3

THERMAL DISPLAY / MONITOR TYPE:

0.49" OLED

THERMAL DISPLAY RESOLUTION:

1920 X 1080

THERMAL EYE RELIEF:

45MM

THERMAL FLAT FIELD CORRECTION:

YES

THERMAL FOV DEG:

10.5° X 6.3°

THERMAL HUMAN DETECT RANGE:

1936 YDS

THERMAL IMAGING PALETTES:

WHITE BLACK RED HOT / MONOCHROME RED / MONOCHROME GREEN / FUSION

THERMAL MAGNIFICATION:

2.5-20X

THERMAL NETD:

<20 MK (@25°C, F#=1.0)

THERMAL OBJECTIVE LENS (FOCAL LENGTH):

25MM F/1.0

THERMAL OPERATING TEMPERATURE:

-30°C TO +55°C (-22°F TO +131°F)

THERMAL OPTICS WI-FI:

YES

THERMAL PIP MODE:

YES

THERMAL POWER SUPPLY:

5 VDC/2 A USB TYPE-C INTERFACE

THERMAL RANGEFINDER:

STADIAMETRIC

THERMAL RECORDING TYPE:

ON-BOARD VIDEO AND AUDIO & STILL IMAGES

THERMAL RETICLE:

10 RETICLES / 4 COLORS / ON/OFF

THERMAL SENSOR FRAME (REFRESH) RATE:

50 HZ

THERMAL SENSOR PIXEL INTERVAL:

12 UM

THERMAL SENSOR RESOLUTION:

384 X 288 (UNCOOLED)

THERMAL STANDBY MODE:

YES

THERMAL STORAGE:

BUILT-IN EMMC (16 GB)

THERMAL VIDEO RECORDING RESOLUTION:

1920X1080

WARRANTY:

MFG 5 YEAR

WATERPROOF:

IP67

WEIGHT:

1.1 LB

DESCRIPTION

Although it seems like just yesterday the celebrated AGM Rattler thermal riflescope family got upgraded with the introduction of the RattlerV2’s, the updated RattlerV3 testifies to the fact that evolution never stops.

The RattlerV3 25-384 pairs a 25mm Germanium lens with an industry-leading sub-15mK thermal sensor and a new 1920x1080 high resolution display, which combines to produce the best 384 resolution thermal image. These technical parameters work together to produce a detection range 1.1 miles.

The RattlerV3 25-384 has a base magnification of 2.5X, making it an optimal option for predator hunters in wide-open terrain. Its also the first Rattler ever to come with a shutterless NUC and AGM’s powerful new Image Boost 2.0 imaging algorithm.

Large, sturdy buttons and a manual focus ring were designed to aid gloved fingers in cold winter weather, while the removable rechargeable NE-4400 battery offers one of the most robust and easy to install battery systems on the market.

The firmware package allows users an amazing level of customization: on-board pitch scale, 10 brightness and contrast settings, warm & cold viewing modes, multiple color palettes, picture in picture, on-board video recording with sound, WiFi hotspot, multiple zeroing profiles, shot activated video recording, defective pixel repair and hotspot locator.

Also included is an Americanmade ADM mounting system.

Included :

ADM 2120 Mount
Two NE-4400 Rechargeable Batteries
Battery Charger
USB Cable
Lens Cloth
Owners Manual
Carrying Case
