Home > Catalog > AGM RattlerV2 25-256 Thermal Rifle Scope 256x192 (50 Hz) 25mm lens

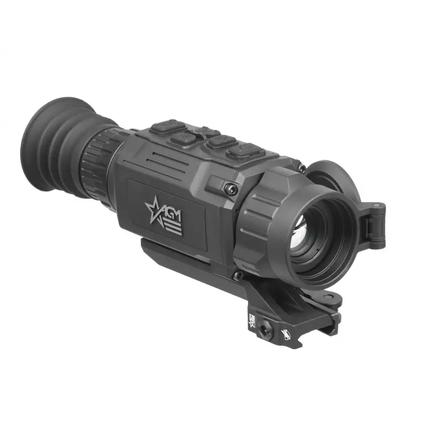

AGM RattlerV2 25-256 Thermal Rifle Scope 256x192 (50 Hz) 25mm lens

ITEM NUMBER:
AX314218550204R221
UPC:
810027777300
BRAND:
AGM
MFG PRODUCT #:
314218550204R221
SPECIFICATIONS
BATTERY COUNT:
2
BATTERY RUN TIME:
UP TO 11.5 HOURS (25 DEG C WITH HOTSPOT OFF)
BATTERY TYPE:
REPLACEABLE AND RECHARGEABLE LI-ION BATTERY
BRAND:
AGM
BRAND FAMILY:
RATTLERV2
CA PROP 65:
YES
COLOR:
BLACK
CONDITION:
NEW
COUNTRY OF ORIGIN:
USA
MATERIAL:
ALUMINUM
MICROPHONE:
YES
OPTICS APP SUPPORT:
AGM CONNECT
OPTICS CLASS:
THERMAL IMAGING
OPTICS FINISH:
BLACK MATTE
OPTICS LENGTH:
8.5"
OPTICS MOUNTING SYSTEM:
ADM QD
OPTICS OBJECTIVE:
25
OPTICS SHOCKPROOF:
YES
OPTICS TYPE:
THERMAL RIFLE SCOPE
THERMAL BLUETOOTH:
NO
THERMAL BORESIGHT ADJ:
DIGITAL CONTROLLED
THERMAL CALIBER RATING:
308 WIN
THERMAL DETECTOR TYPE:
12UM UNCOOLED 50 HZ
THERMAL DIGITAL ZOOM:
1X 2X 4X 8X
THERMAL DIOPTER ADJ:
-5/+5
THERMAL DISPLAY / MONITOR TYPE:
0.39" OLED
THERMAL DISPLAY RESOLUTION:
256 X 192
THERMAL EYE RELIEF:
45MM
THERMAL FLAT FIELD CORRECTION:
AUTO / MANUAL / EXTERNAL CORRECTION
THERMAL FOV DEG:
7.0° × 5.3°
THERMAL HUMAN DETECT RANGE:
1250 YDS
THERMAL IMAGING PALETTES:
WHITE BLACK RED HOT FUSION
THERMAL MAGNIFICATION:
3.5-28X
THERMAL MULTI-LANGUAGE MENU:
YES
THERMAL NETD:
<35 MK (@25°C), F#=1.0
THERMAL OBJECTIVE LENS (FOCAL LENGTH):
25MM F/1.0
THERMAL OPERATING TEMPERATURE:
-30°C TO +55°C (-22°F TO +131°F)
THERMAL OPTICS WI-FI:
YES
THERMAL PIP MODE:
YES
THERMAL POWER SUPPLY:
5 VDC/2 A USB TYPE-C INTERFACE
THERMAL RANGEFINDER:
STADIAMETRIC
THERMAL RECORDING TYPE:
ON-BOARD VIDEO AND AUDIO
THERMAL RETICLE:
MULTIPLE COLORS AND PATTERNS
THERMAL SCENE MODES:
COLD / WARM
THERMAL SENSOR FRAME (REFRESH) RATE:
50 HZ
THERMAL SENSOR PIXEL INTERVAL:
12 UM
THERMAL SENSOR RESOLUTION:
256 X 192
THERMAL SNAPSHOT CAPTURE:
YES
THERMAL STANDBY MODE:
YES
THERMAL STORAGE:
BUILT-IN EMMC (16 GB)
THERMAL TEMP SPOT TRACKING:
YES
THERMAL VIDEO RECORDING RESOLUTION:
YES
WARRANTY:
MFG 3 YEAR LIMITED
WATERPROOF:
YES
WEIGHT:
17.1 OZ
DESCRIPTION

The RattlerV2 25-256, an improved version of the Rattler TS25-256, is an awesome budget option for closer-ranged night hunts, beginners getting into thermal hunting, or to use as a buddy scope.

It features a 25mm Germanium lens, a 256x192 resolution thermal sensor, and a 3.5x base magnification with a detection range of up to 1250 yards. Out of the two 384-resolution options, this thermal scope has a higher base magnification and a slightly narrower Field of View (7.0° × 5.3° or 37 ft @ 100 yds) giving you a healthy mix of scanning coverage with improved identification capabilities at further distances. The upgrade from a 25 Hz to a 50 Hz refresh rate in the Rattler V2 25-256 ensures smoother scanning with minimal lag.

The RattlerV2 25-256 includes enhancements familiar to AGM Rattler users, with some additional game-changing improvements. An upgraded battery compartment accommodates a rechargeable battery, extending run time to 11.5 hours. Notable features include Shot Activated Recording, a simplified menu layout, and 10 reticle options with multiple zeroing profiles for various calibers and rifles. The scope also comes with a custom ADM QD Mount for easy removal and reattachment, Wi-Fi hotspot connectivity through the AGM app, a user-friendly, raised 5-button layout for easy navigation, even with gloves, and much more!

Features:

  • Upgraded Scope Body Design
  • 25mm Germanium lens
  • 256x192 resolution thermal sensor
  • 3.5x base magnification
  • 3.5x-28x digital zoom
  • Detection range up to 1250 m/yds
  • Field of View at 7.0° × 5.3° (37 ft @ 100 yds)
  • Improved refresh rate: 50 Hz (up from 25 Hz)
  • Enhanced focus ring with short throw
  • Upgraded Lens Cap
  • Rechargeable battery with up to 11.5 hours of run time
  • Shot Activated Recording
  • Video and Audio Recording
  • Simplified menu layout for ease of use
  • 10 different reticle options
  • Multiple zeroing profiles for various calibers and rifles
  • Custom ADM QD Mount for easy scope removal and reattachment
  • Wi-Fi hotspot for connectivity with the AGM app
  • Raised 5-button layout for easy navigation, even with gloves
