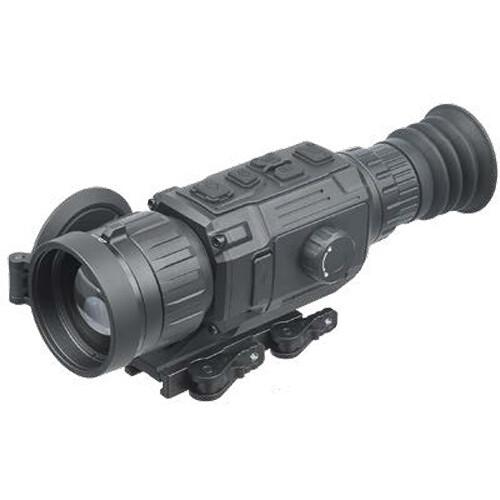

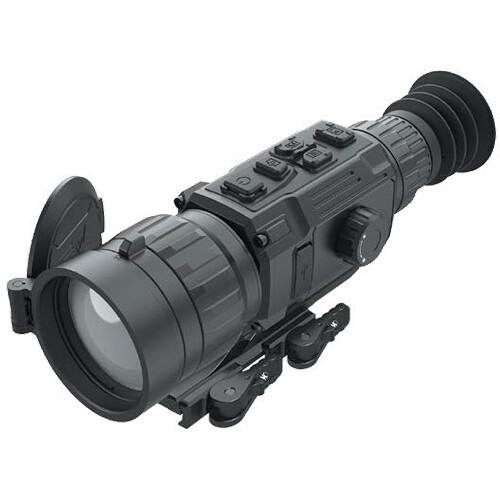

AGM Clarion 384 Dual Focus (25/50) Thermal Rifle Scope 20mK 384x288

ITEM NUMBER:

AXCLAR25384

UPC:

810027771582

BRAND:

AGM

MFG PRODUCT #:

CLAR25-384

SPECIFICATIONS

BATTERY COUNT:

BATTERY RUN TIME:

8.5 HR

BATTERY TYPE:

REPLACEABLE AND RECHARGEABLE LI-ION BATTERY

BRAND:

AGM

BRAND FAMILY:

CA PROP 65:

YES

COLOR:

BLACK

CONDITION:

NEW

COUNTRY OF ORIGIN:

USA

MATERIAL:

ALUMINUM

OPTICS APP SUPPORT:

AGM CONNECT

OPTICS CLASS:

THERMAL IMAGING

OPTICS FINISH:

MATTE

OPTICS LENGTH:

9.5"

OPTICS MOUNTING SYSTEM:

ADM QD

OPTICS SHOCKPROOF:

YES

OPTICS TYPE:

THERMAL RIFLE SCOPE

THERMAL BLUETOOTH:

THERMAL BORESIGHT ADJ:

DIGITAL CONTROLLED

THERMAL CALIBER RATING:

308 WIN

THERMAL DETECTOR TYPE:

12UM VOX UNCOOLED FOCAL PLANE ARRAY

THERMAL DIGITAL ZOOM:

1X 2X 4X 8X

THERMAL DISPLAY / MONITOR TYPE:

0.39" OLED

THERMAL DISPLAY RESOLUTION:

384 X 288

THERMAL EYE RELIEF:

45MM

THERMAL FLAT FIELD CORRECTION:

AUTO / MANUAL / EXTERNAL CORRECTION

THERMAL FOV DEG:

10.5° × 7.9° / 5.3° × 4.0°

THERMAL HUMAN DETECT RANGE:

1200 / 2600 YDS

THERMAL IMAGING PALETTES:

WHITE BLACK RED HOT FUSION

THERMAL MAGNIFICATION:

2.5X

THERMAL MULTI-LANGUAGE MENU:

YES

THERMAL NETD:

<20 MK

THERMAL OPERATING TEMPERATURE:

-30°C TO +55°C (-22°F TO +131°F)

THERMAL OPTICS WI-FI:

YES

THERMAL PIP MODE:

YES

THERMAL POWER SUPPLY:

5 VDC/2 A USB TYPE-C

THERMAL RANGEFINDER:

STADIAMETRIC

THERMAL RECORDING TYPE:

ON-BOARD VIDEO AND AUDIO

THERMAL RETICLE:

MULTIPLE COLORS AND PATTERNS

THERMAL SCENE MODES:

COLD / WARM

THERMAL SENSOR FRAME (REFRESH) RATE:

50 HZ

THERMAL SENSOR RESOLUTION:

384 X 288

THERMAL SNAPSHOT CAPTURE:

YES

THERMAL STANDBY MODE:

YES

THERMAL STORAGE:

BUILT-IN EMMC (16 GB)

THERMAL TEMP SPOT TRACKING:

YES

THERMAL VIDEO RECORDING RESOLUTION:

YES

WARRANTY:

MFG 5 YEAR

WATERPROOF:

YES

WEIGHT:

26 OZ

DESCRIPTION

Featuring a sub-20mK, 12µ sensor, the Clarion 384 Dual-Focus Thermal Imaging Riflescope from AGM offers you the choice of two lenses—25mm f/0.8 or 50mm f/1.0 so you can select the magnification that best suits your situation, with no loss of image quality. Choose 2x or 4.5x, plus 1-8x digital zoom, to see game nearby or well downrange. The scope comes with two rechargeable batteries, each with an 8.5-hour runtime, so you can hunt right through the night. You can also capture and save video to built-in memory or export it via Wi-Fi or USB-C.

Specificiations:

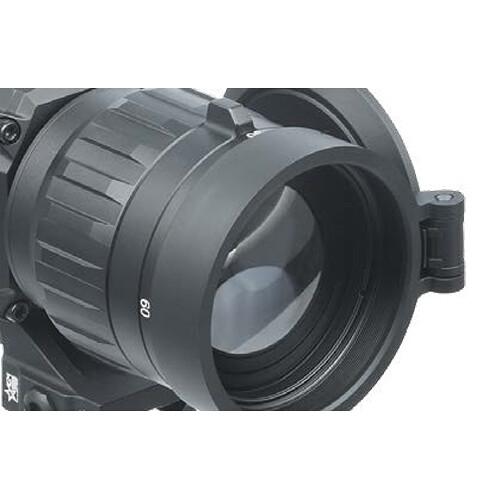

Dual focus objective lens
12um thermal detector, <20Mk NETD
50Hz refresh rate for smooth video
1024 x 768 OLED display
10 reticles plus red hot, white hot, black hot, and fusion palettes
Onboard video/audio recording and image capture
Built-in eMMC storage, 16 GB
Shot-Activated Recording
Wi-Fi data transmission
Stadiametric rangefinder
Standby mode
8.5 hours battery life with hot spot off
Can run on 5 VDC 2A USB-C external power supply
IP67 waterproof and dust-tight
Withstands recoil up to 1000G
