Home > Catalog > AGM RattlerV2 35-640 Thermal Rifle Scope 20mK 12 Micron 640x512 35mm lens

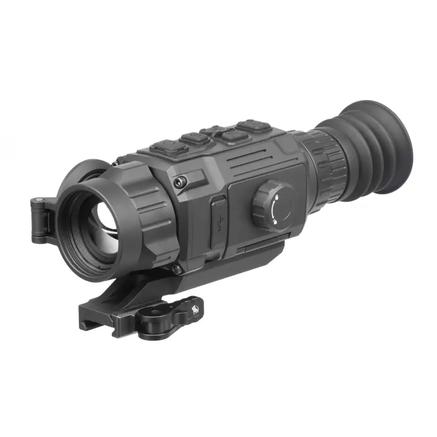

AGM RattlerV2 35-640 Thermal Rifle Scope 20mK 12 Micron 640x512 35mm lens

ITEM NUMBER:
AX314205550205R361
UPC:
810027775030
BRAND:
AGM
MFG PRODUCT #:
314205550205R361
SPECIFICATIONS
BATTERY COUNT:
2
BATTERY RUN TIME:
UP TO 9 HOURS (25°C, WITH HOTSPOT OFF)
BATTERY TYPE:
REPLACEABLE AND RECHARGEABLE LI-ION BATTERY
BRAND:
AGM
BRAND FAMILY:
RATTLERV2
CA PROP 65:
YES
COLOR:
BLACK
CONDITION:
NEW
COUNTRY OF ORIGIN:
USA
MATERIAL:
ALUMINUM
MICROPHONE:
YES
OPTICS APP SUPPORT:
AGM CONNECT
OPTICS CLASS:
THERMAL IMAGING
OPTICS FINISH:
MATTE
OPTICS LENGTH:
8.7"
OPTICS MOUNTING SYSTEM:
ADM QD
OPTICS OBJECTIVE:
35
OPTICS SHOCKPROOF:
YES
OPTICS TYPE:
THERMAL RIFLE SCOPE
THERMAL BLUETOOTH:
NO
THERMAL BORESIGHT ADJ:
DIGITAL CONTROLLED
THERMAL CALIBER RATING:
308 WIN
THERMAL DETECTOR TYPE:
12UM VOX UNCOOLED FOCAL PLANE ARRAY
THERMAL DIGITAL ZOOM:
1X 2X 4X 8X
THERMAL DISPLAY / MONITOR TYPE:
0.39" OLED
THERMAL DISPLAY RESOLUTION:
640 X 512
THERMAL EYE RELIEF:
45MM
THERMAL FLAT FIELD CORRECTION:
AUTO / MANUAL / EXTERNAL CORRECTION
THERMAL FOV DEG:
12.5° × 10.0°
THERMAL HUMAN DETECT RANGE:
1800 YDS
THERMAL IMAGING PALETTES:
WHITE BLACK RED HOT FUSION
THERMAL MAGNIFICATION:
2X
THERMAL MULTI-LANGUAGE MENU:
YES
THERMAL NETD:
<20 MK
THERMAL OPERATING TEMPERATURE:
-30°C TO +55°C (-22°F TO +131°F)
THERMAL OPTICS WI-FI:
YES
THERMAL PIP MODE:
YES
THERMAL POWER SUPPLY:
5 VDC/2 A USB TYPE-C
THERMAL RANGEFINDER:
STADIAMETRIC
THERMAL RECORDING TYPE:
ON-BOARD VIDEO AND AUDIO
THERMAL RETICLE:
MULTIPLE COLORS AND PATTERNS
THERMAL SCENE MODES:
COLD / WARM
THERMAL SENSOR FRAME (REFRESH) RATE:
50 HZ
THERMAL SENSOR RESOLUTION:
640 X 480
THERMAL SNAPSHOT CAPTURE:
YES
THERMAL STANDBY MODE:
YES
THERMAL STORAGE:
BUILT-IN EMMC (16 GB)
THERMAL TEMP SPOT TRACKING:
YES
THERMAL VIDEO RECORDING RESOLUTION:
YES
WARRANTY:
MFG 5 YEAR
WATERPROOF:
YES
WEIGHT:
18 OZ
DESCRIPTION

The AGM RattlerV2 35-640 thermal scope features a 35mm Germanium lens, a 640 × 512 resolution thermal sensor, and a 2x base magnification with a detection range of up to 1800 m/yd. Out of the two premium 640-resolution options, this thermal scope has a lower base magnification and a wider Field of View (12.5° × 10.0° or 65 ft @ 100 yds) providing extensive area coverage while scanning

The RattlerV2 35-640 includes features familiar to AGM Rattler users, with some additional game-changing improvements such as an upgraded battery compartment that accommodates a rechargeable battery extending run time to 9 hours and a new 12-micron thermal sensor that has the highest sensitivity rating (sub-20 mk) on the market.

Notable features include Shot Activated Recording, a simplified menu layout, and 10 reticle options with multiple zeroing profiles for various calibers and rifles. The scope also comes with a custom ADM QD Mount for easy removal and reattachment, Wi-Fi hotspot connectivity through the AGM app, a user-friendly, raised 5-button layout for easy navigation, even with gloves, and much more!

Specificiations:

  • Upgraded Scope Body Design
  • 35mm Germanium lens
  • 640 × 512 resolution thermal sensor
  • 2x base magnification
  • 2× - 16× digital zoom
  • Detection range up to 1800 m/yd
  • Field of View at 12.5° × 10.0° (65 ft @ 100 yds)
  • 50 Hz Refresh Rate
  • Enhanced focus ring with short throw
  • Upgraded Lens Cap
  • Rechargeable battery with up to 11 hours of run time
  • Shot Activated Recording
  • Video and Audio Recording
  • Simplified menu layout for ease of use
  • 10 different reticle options
  • Multiple zeroing profiles for various calibers and rifles
  • Custom ADM QD Mount for easy scope removal and reattachment
  • Wi-Fi hotspot for connectivity with the AGM app
  • Raised 5-button layout for easy navigation, even with gloves



California Proposition 65 WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
