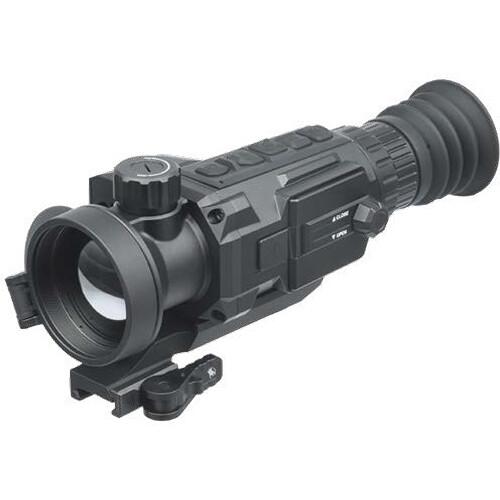

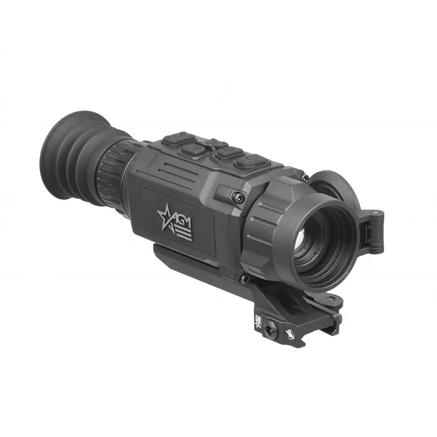

AGM RattlerV2 19-256 Thermal Rifle Scope 256x192 (50 Hz) 19mm lens

ITEM NUMBER:
AX314218550203R921
UPC:
810027772596
BRAND:
AGM
MFG PRODUCT #:
314218550203R921
SPECIFICATIONS
BATTERY COUNT:
2
BATTERY RUN TIME:
UP TO 11.5 HOURS (25 DEG C WITH HOTSPOT OFF)
BATTERY TYPE:
REPLACEABLE AND RECHARGEABLE LI-ION BATTERY
BRAND:
AGM
BRAND FAMILY:
RATTLERV2
CA PROP 65:
YES
COLOR:
BLACK
CONDITION:
NEW
COUNTRY OF ORIGIN:
USA
MATERIAL:
ALUMINUM
MICROPHONE:
YES
OPTICS APP SUPPORT:
AGM CONNECT
OPTICS CLASS:
THERMAL IMAGING
OPTICS FINISH:
ANODIZED
OPTICS LENGTH:
8.5"
OPTICS MOUNTING SYSTEM:
ADM QD
OPTICS OBJECTIVE:
19
OPTICS SHOCKPROOF:
YES
OPTICS TYPE:
THERMAL RIFLE SCOPE
THERMAL BLUETOOTH:
NO
THERMAL BORESIGHT ADJ:
DIGITAL CONTROLLED
THERMAL CALIBER RATING:
308 WIN
THERMAL DETECTOR TYPE:
12UM UNCOOLED 50 HZ
THERMAL DIGITAL ZOOM:
2.5X-20X
THERMAL DISPLAY / MONITOR TYPE:
0.39" OLED
THERMAL DISPLAY RESOLUTION:
256 X 192
THERMAL EYE RELIEF:
45MM
THERMAL FLAT FIELD CORRECTION:
AUTO / MANUAL / EXTERNAL CORRECTION
THERMAL FOV DEG:
9.3° × 6.9°
THERMAL HUMAN DETECT RANGE:
950 YDS
THERMAL IMAGING PALETTES:
WHITE BLACK RED HOT FUSION
THERMAL MAGNIFICATION:
2.5X
THERMAL MULTI-LANGUAGE MENU:
YES
THERMAL NETD:
<35 MK (@25°C), F#=1.0
THERMAL OPERATING TEMPERATURE:
-30°C TO +55°C (-22°F TO +131°F)
THERMAL OPTICS WI-FI:
YES
THERMAL PIP MODE:
YES
THERMAL POWER SUPPLY:
5 VDC/2 A USB TYPE-C
THERMAL RANGEFINDER:
STADIAMETRIC
THERMAL RECORDING TYPE:
ON-BOARD VIDEO AND AUDIO
THERMAL RETICLE:
MULTIPLE COLORS AND PATTERNS
THERMAL SCENE MODES:
COLD / WARM
THERMAL SENSOR FRAME (REFRESH) RATE:
50 HZ
THERMAL SENSOR PIXEL INTERVAL:
12 UM
THERMAL SENSOR RESOLUTION:
256 X 192
THERMAL SNAPSHOT CAPTURE:
YES
THERMAL STANDBY MODE:
YES
THERMAL STORAGE:
16 GB
THERMAL TEMP SPOT TRACKING:
YES
THERMAL VIDEO RECORDING RESOLUTION:
YES
WARRANTY:
MFG 3 YEAR LIMITED
WATERPROOF:
YES
WEIGHT:
17 OZ
DESCRIPTION

The RattlerV2 19-256, an improved version of the Rattler TS19-256, is an awesome option for close-range night hunts, beginners getting into thermal hunting, or to use as a buddy scope.

It features a 19mm Germanium lens, a 256x192 resolution thermal sensor, and a 2.5x base magnification with a detection range of up to 950 yards. Its wide Field of View (9.3° × 6.9° or 49 feet at 100 yards) allows for extensive area coverage during scanning. The upgrade from a 25 Hz to a 50 Hz refresh rate in the Rattler V2 19-256 ensures smoother scanning with minimal lag.

The RattlerV2 19-256 includes enhancements familiar to AGM Rattler users, with some additional game-changing improvements. An upgraded battery compartment accommodates a rechargeable battery, extending run time to 11.5 hours. Notable features include Shot Activated Recording, a simplified menu layout, and 10 reticle options with multiple zeroing profiles for various calibers and rifles. The scope also comes with a custom ADM QD Mount for easy removal and reattachment, Wi-Fi hotspot connectivity through the AGM app, a user-friendly, raised 5-button layout for easy navigation, even with gloves, and much more.

  • Upgraded Scope Body Design
  • 19mm Germanium lens
  • 256x192 resolution thermal sensor
  • 2.5x base magnification
  • 2.5x-20x digital zoom
  • Detection range up to 950 yards
  • Wide Field of View: 9.3° × 6.9° (49 feet at 100 yards)
  • Improved refresh rate: 50 Hz (up from 25 Hz)
  • Enhanced focus ring with short throw
  • Upgraded Lens Cap
  • Rechargeable battery with up to 11.5 hours of run time
  • Shot Activated Recording
  • Video and Audio Recording
  • Simplified menu layout for ease of use
  • 10 different reticle options
  • Multiple zeroing profiles for various calibers and rifles
  • Custom ADM QD Mount for easy scope removal and reattachment
  • Wi-Fi hotspot for connectivity with the AGM app
  • Raised 5-button layout for easy navigation, even with gloves
  • PACKAGE INCLUDES: ADM QD Mount, Two Rechargeable Batteries, Battery Charger, USB Cable, Lens Cloth, Owners Manual, Carrying Case



California Proposition 65 WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
