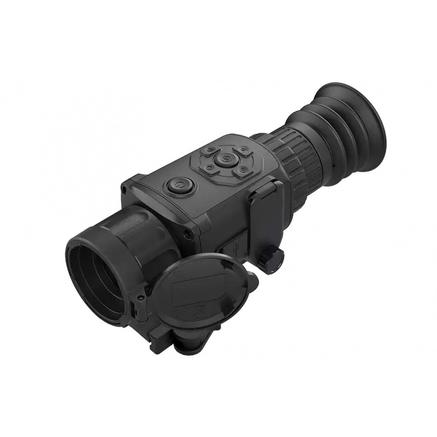

AGM Rattler TS35-640 Thermal Rifle Scope / Monocular 12um 640x512 35mm Lens

ITEM NUMBER:
AX3143755005R361
UPC:
810027779199
BRAND:
AGM
MFG PRODUCT #:
3143755005R361
SPECIFICATIONS
BATTERY COUNT:
2
BATTERY RUN TIME:
UP TO 4.5 HR
BATTERY TYPE:
2 CR123 (3V) LITHIUM OR 2 RCR123 (UP TO 4.2V)
BRAND:
AGM
BRAND FAMILY:
RATTLER
CA PROP 65:
YES
COLOR:
BLACK
CONDITION:
NEW
OPTICS CLASS:
COMPACT
OPTICS MOUNTING SYSTEM:
PICATINNY WEAVER STYLE
OPTICS SHOCKPROOF:
YES
OPTICS TYPE:
THERMAL RIFLE SCOPE
THERMAL BORESIGHT ADJ:
DIGITAL CONTROLLED
THERMAL CVBS OUTPUT:
YES (VIA USB)
THERMAL DETECTOR TYPE:
12UM UNCOOLED 50 HZ
THERMAL DIGITAL ZOOM:
1X 2X 4X 8X
THERMAL DISPLAY / MONITOR TYPE:
OLED
THERMAL DISPLAY RESOLUTION:
640 X 512
THERMAL DROP TEST HEIGHT:
4.9 FT / 1.5M
THERMAL EYE RELIEF:
45MM
THERMAL FLAT FIELD CORRECTION:
AUTO / MANUAL / EXTERNAL CORRECTION
THERMAL FOV DEG:
12.5° × 10.0°
THERMAL HUMAN DETECT RANGE:
1750 YDS
THERMAL IMAGING PALETTES:
WHITE BLACK RED HOT FUSION
THERMAL MAGNIFICATION:
2-16X
THERMAL OBJECTIVE LENS (FOCAL LENGTH):
35MM F/1.0
THERMAL OPTICS WI-FI:
YES
THERMAL PIP MODE:
YES
THERMAL POWER SUPPLY:
5 VDC/2 A USB TYPE-C INTERFACE
THERMAL RECORDING TYPE:
ON-BOARD VIDEO AND STILL IMAGES
THERMAL RETICLE:
5 RETICLES / 3 COLORS / ON/OFF
THERMAL SCENE MODES:
JUNGLE / RECOGNITION
THERMAL SENSOR FRAME (REFRESH) RATE:
50 HZ
THERMAL SENSOR PIXEL INTERVAL:
12 UM
THERMAL STORAGE:
BUILT-IN EMMC (16 GB)
WARRANTY:
MFG 3 YEAR
WATERPROOF:
IP67
DESCRIPTION

AGM Rattler TS35-640 is the compact thermal imaging scope developed for 24 hours operation under any weather and environmental conditions. This rifle scope with 35 mm Germanium lens is perfect unit for medium range shooting.
Thermal image riflescope has 640×512, 12μm thermal detector with 50 Hz refresh rate and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular.  The scope is mainly applied to scenarios such as patrolling, hunting, etc.
Powered with two CR123 batteries the AGM Rattler TS35-640 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.

  • 640×512 thermal resolution
  • 12 μm, 35 mK NETD high sensitivity detector
  • Fast 50Hz imaging
  • 1024×768 resolution, 0.39-inch OLED display
  • 2x optical magnification
  • 1x, 2x, 4x, 8x digital zoom
  • Digital image processing technology
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Various reticle types and colors
  • Stadiametric rangefinder
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Standby mode
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • 5-Year warranty

California Proposition 65 WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
