Home > Catalog > AGM Secutor LRF-C 75-640 Pro Grade Thermal Clip-On 12 Micron 640x512 75mm

AGM Secutor LRF-C 75-640 Pro Grade Thermal Clip-On 12 Micron 640x512 75mm

ITEM NUMBER:

AXSECU75640CLRF

UPC:

BRAND:

AGM

MFG PRODUCT #:

SECU75-640C-LRF

SPECIFICATIONS

BATTERY COUNT:

BATTERY TYPE:

CR123A

BRAND:

AGM

BRAND FAMILY:

SECUTOR LRF

CA PROP 65:

YES

COLOR:

BLACK

CONDITION:

NEW

OPTICS APP SUPPORT:

AGM CONNECT

OPTICS CLASS:

THERMAL IMAGING

OPTICS SHOCKPROOF:

YES

OPTICS TYPE:

THERMAL CLIP-ON

THERMAL DETECTOR TYPE:

12UM VOX UNCOOLED FOCAL PLANE ARRAY

THERMAL DISPLAY / MONITOR TYPE:

0.39" OLED

THERMAL FLAT FIELD CORRECTION:

AUTO / MANUAL / EXTERNAL CORRECTION

THERMAL FOV DEG:

5.9° X 4.7°

THERMAL HUMAN DETECT RANGE:

3200 YDS

THERMAL IMAGING PALETTES:

WHITE BLACK RED HOT FUSION

THERMAL NETD:

<20 MK

THERMAL OBJECTIVE LENS (FOCAL LENGTH):

75 MM; F1.2

THERMAL OPERATING TEMPERATURE:

-30°C TO +55°C (-22°F TO +131°F)

THERMAL OPTICS WI-FI:

YES

THERMAL PIP MODE:

YES

THERMAL POWER SUPPLY:

5 VDC/2 A USB TYPE-C

THERMAL RANGEFINDER:

UP TO 1000M ±4M ACCURACY

THERMAL RECORDING TYPE:

ON-BOARD VIDEO AND AUDIO & STILL IMAGES

THERMAL RESPONSE WAVEBAND:

8UM TO 14UM

THERMAL SENSOR FRAME (REFRESH) RATE:

50 HZ

THERMAL SENSOR PIXEL INTERVAL:

12 UM

THERMAL SENSOR RESOLUTION:

640 X 512

THERMAL SNAPSHOT CAPTURE:

YES

THERMAL STANDBY MODE:

YES

THERMAL STORAGE:

BUILT-IN EMMC (16 GB)

THERMAL VIDEO RECORDING RESOLUTION:

YES

WARRANTY:

MFG 5 YEAR

WATERPROOF:

IP67

WEIGHT:

0.75 KG (1.65 LB)

DESCRIPTION

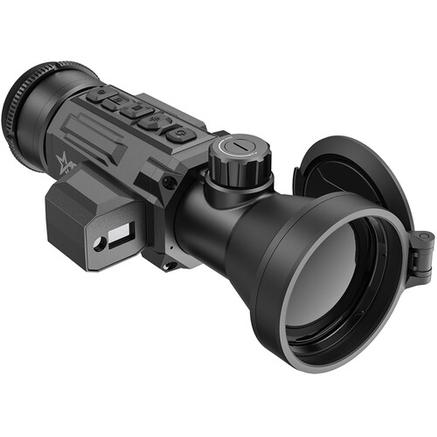

The AGM Secutor LRF-C is a compact thermal imaging clip-on system with built-in precision laser rangefinder that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Equipped with a highly sensitive, 12μm thermal detector and 1024×768 OLED monitor, the AGM Secutor LRF-C provides a clear image under harsh environmental conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc.

The user-friendly interface, comfortable and ergonomic operating controls makes Secutor LRF-C use incredibly easy. The Secutor LRF-C can easily be attached in front of rifle scopes with magnification up to 10x for medium range use.
The built-in laser range finder of the AGM Secutor LRF-C is designed to determine the exact distance between the observer and the target. Measurement results are displayed in the scopes monitor.

Four replaceable Li-Ion battery gives the device more than 6 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on-board video/audio recording and image capture. Onboard Wi-Fi module allows live video streaming and video/image recording via mobile applications.

Quick conversion of daytime optics into thermal imaging scope
12μm thermal detector
High sensitivity (NETD less than 20 mK)
Fast 50Hz imaging
Built-in laser rangefinder
Adjustable color palettes
High resolution OLED display
On-board video/audio recording and image capture
Built-in EMMC storage (16 GB)
Wi-Fi data transmission
Standby mode
More than 6 hours battery life
External power supply compatibility
Waterproof & shockproof
5-year warranty
