AGM Rattler-C V2 50-640 Thermal Imaging Clip-On 20mK 12 Mic 640x512 50mm
ITEM NUMBER:
AX314205560206R561
UPC:
BRAND:
AGM
MFG PRODUCT #:
314205560206R561
SPECIFICATIONS
BATTERY COUNT:
2
BATTERY RUN TIME:
UP TO 9 HOURS (25°C, WITH HOTSPOT OFF)
BATTERY TYPE:
REPLACEABLE AND RECHARGEABLE LI-ION BATTERY
BRAND:
AGM
BRAND FAMILY:
RATTLER-C V2
CA PROP 65:
YES
COLOR:
BLACK
CONDITION:
NEW
COUNTRY OF ORIGIN:
USA
MATERIAL:
ALUMINUM
MICROPHONE:
YES
OPTICS APP SUPPORT:
AGM CONNECT
OPTICS CLASS:
THERMAL IMAGING
OPTICS FINISH:
MATTE
OPTICS LENGTH:
17.7"
OPTICS MOUNTING SYSTEM:
ADM QD
OPTICS OBJECTIVE:
50
OPTICS SHOCKPROOF:
YES
OPTICS TYPE:
THERMAL CLIP-ON
THERMAL BLUETOOTH:
NO
THERMAL BORESIGHT ADJ:
DIGITAL CONTROLLED
THERMAL CALIBER RATING:
308 WIN
THERMAL DETECTOR TYPE:
12UM VOX UNCOOLED FOCAL PLANE ARRAY
THERMAL DISPLAY / MONITOR TYPE:
0.39" OLED
THERMAL DISPLAY RESOLUTION:
640 X 512
THERMAL EYE RELIEF:
10MM
THERMAL FLAT FIELD CORRECTION:
AUTO / MANUAL / EXTERNAL CORRECTION
THERMAL FOV DEG:
8.8° × 7.0°
THERMAL HUMAN DETECT RANGE:
2600 YDS
THERMAL IMAGING PALETTES:
WHITE BLACK RED HOT FUSION
THERMAL MAGNIFICATION:
1X
THERMAL MULTI-LANGUAGE MENU:
YES
THERMAL NETD:
<20 MK
THERMAL OPERATING TEMPERATURE:
-30°C TO +55°C (-22°F TO +131°F)
THERMAL OPTICS WI-FI:
YES
THERMAL PIP MODE:
YES
THERMAL POWER SUPPLY:
5 VDC/2 A USB TYPE-C
THERMAL RANGEFINDER:
STADIAMETRIC
THERMAL RECORDING TYPE:
ON-BOARD VIDEO AND AUDIO
THERMAL SCENE MODES:
COLD / WARM
THERMAL SENSOR FRAME (REFRESH) RATE:
50 HZ
THERMAL SENSOR RESOLUTION:
640 X 512
THERMAL SNAPSHOT CAPTURE:
YES
THERMAL STANDBY MODE:
YES
THERMAL STORAGE:
BUILT-IN EMMC (16 GB)
THERMAL TEMP SPOT TRACKING:
YES
THERMAL VIDEO RECORDING RESOLUTION:
YES
WARRANTY:
MFG 5 YEAR
WATERPROOF:
YES
WEIGHT:
19 OZ
DESCRIPTION

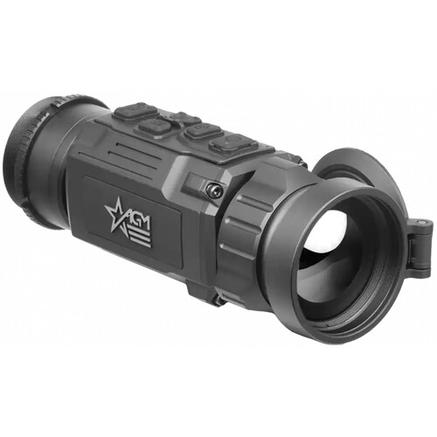

The Rattler-C V2 is built around a 12-micron, 50 Hz sensor that captures 640 x 512 resolution images and displays them on a 1024 x 768 OLED screen. The under-20 NETD rating ensures a low-noise view. The 50mm f/1.0 lens yields a 8.8 x 7.0° field of view. Rated IP67, the device is designed to withstand rainy or dusty conditions.
Features:
- Replaceable proprietary Li-ion rechargeable battery, 9 hours runtime
- Sub-20mK NETD for low-noise imagery
- 640 x 512 resolution with 12-micron sensor
- 50 Hz refresh rate for smooth video
- 1024 x 768 OLED display
- Black hot, red hot, white hot, fusion color palettes
- Onboard video/audio recording and image capture
- Built-in eMMC memory, 16 GB
- Shot-Activated Recording
- Wi-Fi data transmission
- Stadiametric rangefinder
- Standby mode
- IP67 dust and waterproof
- Withstands recoil up to 1000G
California Proposition 65 WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
