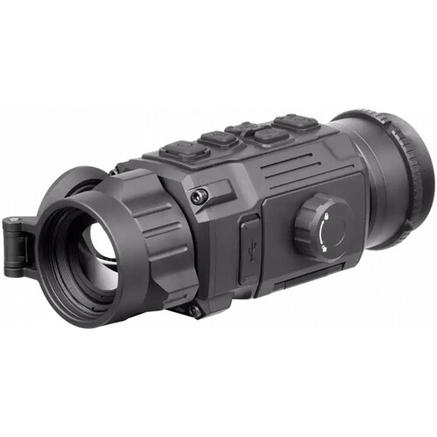

AGM Rattler-C V2 35-384 Thermal Imaging Clip-On 20mK 12 Mic 384x288 35mm

ITEM NUMBER:
AX314205560205R561
UPC:
810027775047
BRAND:
AGM
MFG PRODUCT #:
314205560205R561
SPECIFICATIONS
BATTERY COUNT:
2
BATTERY RUN TIME:
UP TO 11 HOURS (25°C WITH HOTSPOT OFF)
BATTERY TYPE:
REPLACEABLE AND RECHARGEABLE LI-ION BATTERY
BRAND:
AGM
BRAND FAMILY:
RATTLER-C V2
CA PROP 65:
YES
COLOR:
BLACK
CONDITION:
NEW
COUNTRY OF ORIGIN:
USA
MATERIAL:
ALUMINUM
MICROPHONE:
YES
OPTICS APP SUPPORT:
AGM CONNECT
OPTICS CLASS:
THERMAL IMAGING
OPTICS FINISH:
MATTE
OPTICS LENGTH:
7.2"
OPTICS MOUNTING SYSTEM:
ADM QD
OPTICS OBJECTIVE:
35
OPTICS SHOCKPROOF:
YES
OPTICS TYPE:
THERMAL CLIP-ON
THERMAL BLUETOOTH:
NO
THERMAL BORESIGHT ADJ:
DIGITAL CONTROLLED
THERMAL CALIBER RATING:
308 WIN
THERMAL DETECTOR TYPE:
12UM VOX UNCOOLED FOCAL PLANE ARRAY
THERMAL DISPLAY / MONITOR TYPE:
0.39" OLED
THERMAL DISPLAY RESOLUTION:
384 X 288
THERMAL EYE RELIEF:
10MM
THERMAL FLAT FIELD CORRECTION:
AUTO / MANUAL / EXTERNAL CORRECTION
THERMAL FOV DEG:
7.5° × 5.6°
THERMAL HUMAN DETECT RANGE:
1800 YDS
THERMAL IMAGING PALETTES:
WHITE BLACK RED HOT FUSION
THERMAL MAGNIFICATION:
1X
THERMAL MULTI-LANGUAGE MENU:
YES
THERMAL NETD:
<20 MK
THERMAL OBJECTIVE LENS (FOCAL LENGTH):
35MM F/1.0
THERMAL OPTICS WI-FI:
YES
THERMAL PIP MODE:
YES
THERMAL POWER SUPPLY:
5 VDC/2 A USB TYPE-C
THERMAL RANGEFINDER:
STADIAMETRIC
THERMAL RECORDING TYPE:
ON-BOARD VIDEO AND AUDIO
THERMAL RETICLE:
10 RETICLES / 4 COLORS / ON/OFF
THERMAL SCENE MODES:
COLD / WARM
THERMAL SENSOR FRAME (REFRESH) RATE:
50 HZ
THERMAL SENSOR PIXEL INTERVAL:
12 UM
THERMAL SENSOR RESOLUTION:
384 X 288
THERMAL SNAPSHOT CAPTURE:
YES
THERMAL STANDBY MODE:
YES
THERMAL STORAGE:
BUILT-IN EMMC (16 GB)
THERMAL TEMP SPOT TRACKING:
YES
THERMAL VIDEO RECORDING RESOLUTION:
YES
WARRANTY:
MFG 5 YEAR
WATERPROOF:
IP67
WEIGHT:
19 OZ
DESCRIPTION

The AGM Rattler-C V2 series of thermal clip-ons boasts a industry-leading 12 micron, sub-20mk thermal detectors. These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 2600 yards. The Rattler-C V2 thermal clip-ons have a high-sensitivity sensor with 384×288 or 640×512 resolutions, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.

The Rattler-C V2 clip-on The Rattler TC can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 provides up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.

Includes : Thermal imaging clip-on, mount, two rechargeable battery, charger, USB cable, lens cloth, manual, carrying case

features:

  • Replaceable proprietary Li-ion rechargeable battery, 11 hours runtime
  • Sub-20mK NETD for low-noise imagery
  • 384 x 288 resolution with 12-micron sensor
  • 50 Hz refresh rate for smooth video
  • 1024 x 768 OLED display
  • Black hot, red hot, white hot, fusion color palettes
  • Onboard video/audio recording and image capture
  • Built-in eMMC memory, 16 GB
  • Shot-Activated Recording
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • IP67 dust and waterproof
  • Withstands recoil up to 1000G
