Home > Catalog > AGM Secutor LRF-C 50-640 Pro Grade Thermal Clip-On 12 Micron 640x512 50mm

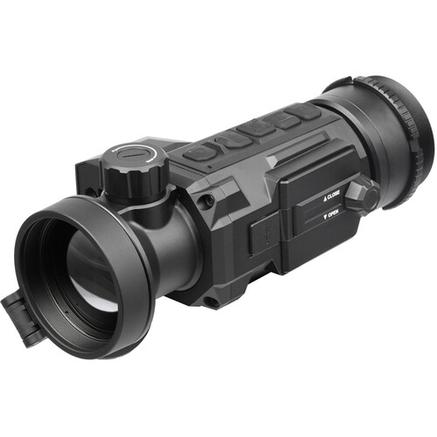

AGM Secutor LRF-C 50-640 Pro Grade Thermal Clip-On 12 Micron 640x512 50mm

ITEM NUMBER:
AXSECU50640CLRF
UPC:
850038039226
BRAND:
AGM
MFG PRODUCT #:
SECU50-640C-LRF
SPECIFICATIONS
BATTERY COUNT:
4
BATTERY RUN TIME:
6 HR
BATTERY TYPE:
CR123A LITHIUM
BRAND:
AGM
BRAND FAMILY:
SECUTOR LRF
CA PROP 65:
YES
COLOR:
BLACK
CONDITION:
NEW
OPTICS CLASS:
THERMAL IMAGING
OPTICS TYPE:
THERMAL CLIP-ON
THERMAL DETECTOR TYPE:
12UM VOX UNCOOLED FOCAL PLANE ARRAY
THERMAL DISPLAY / MONITOR TYPE:
0.39" OLED
THERMAL DISPLAY RESOLUTION:
640 X 512
THERMAL FLAT FIELD CORRECTION:
AUTO / MANUAL / EXTERNAL CORRECTION
THERMAL FOV DEG:
8.8° × 7.0°
THERMAL HUMAN DETECT RANGE:
2600 YDS
THERMAL IMAGING PALETTES:
WHITE BLACK RED HOT FUSION
THERMAL MAGNIFICATION:
1X
THERMAL NETD:
<20 MK
THERMAL OBJECTIVE LENS (FOCAL LENGTH):
50MM F/1.0
THERMAL OPTICS WI-FI:
YES
THERMAL PIP MODE:
YES
THERMAL POWER SUPPLY:
5 VDC/2 A USB TYPE-C
THERMAL RANGEFINDER:
UP TO 1000M ±4M ACCURACY
THERMAL RECORDING TYPE:
ON-BOARD VIDEO AND AUDIO & STILL IMAGES
THERMAL RESPONSE WAVEBAND:
8UM TO 14UM
THERMAL SENSOR FRAME (REFRESH) RATE:
50 HZ
THERMAL SENSOR PIXEL INTERVAL:
12 UM
THERMAL STANDBY MODE:
YES
THERMAL STORAGE:
BUILT-IN EMMC (16 GB)
WARRANTY:
MFG 5 YEAR
WATERPROOF:
IP67
WEIGHT:
1.5 LBS
DESCRIPTION

The AGM Secutor LRF-C is a compact thermal imaging clip-on system with built-in precision laser rangefinder that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Equipped with a highly sensitive, 12μm thermal detector and 1024×768 OLED monitor, the AGM Secutor LRF-C provides a clear image under harsh environmental conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc. The user-friendly interface, comfortable and ergonomic operating controls makes Secutor LRF-C use incredibly easy. The Secutor LRF-C can easily be attached in front of rifle scopes with magnification up to 10x for medium range use.
The built-in laser range finder of the AGM Secutor LRF-C is designed to determine the exact distance between the observer and the target. Measurement results are displayed in the scopes monitor. Four replaceable Li-Ion battery gives the device more than 6 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on-board video/audio recording and image capture. Onboard Wi-Fi module allows live video streaming and video/image recording via mobile applications.

  • Quick conversion of daytime optics into thermal imaging scope
  • 12μm thermal detector
  • High sensitivity (NETD less than 20 mK)
  • Fast 50Hz imaging
  • Built-in laser rangefinder
  • Adjustable color palettes
  • High resolution OLED display
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
  • Wi-Fi data transmission
  • Standby mode
  • More than 6 hours battery life
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-year warranty
