Home > Catalog > Pard Ocelot Thermal Imaging Rifle Scope with LRF 640-50 50mm Lens

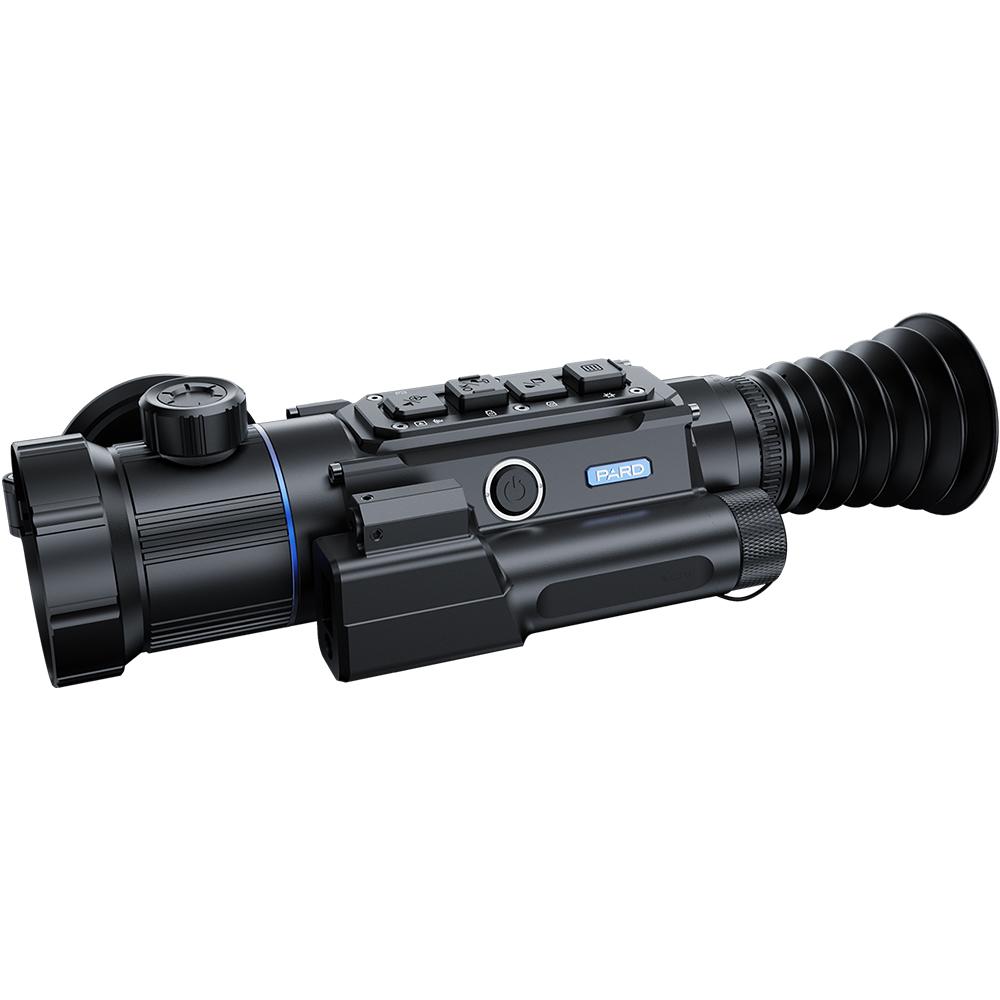

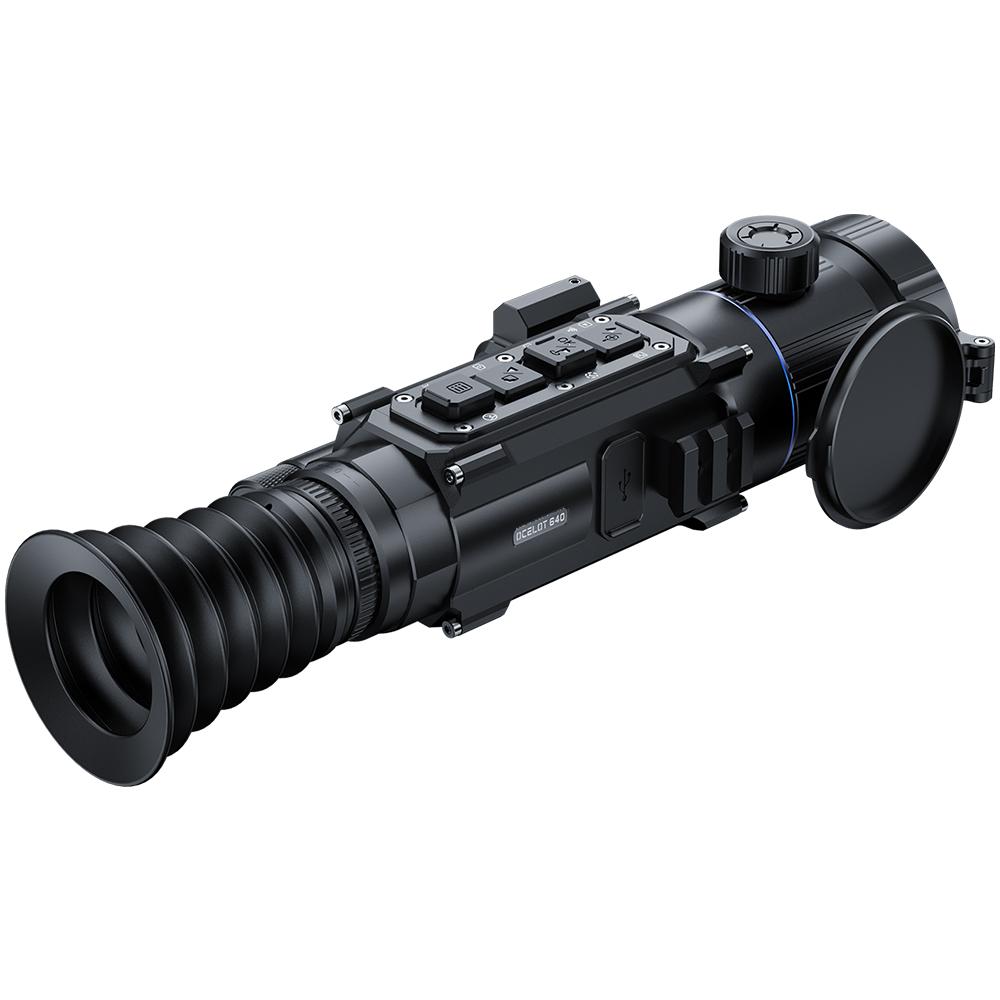

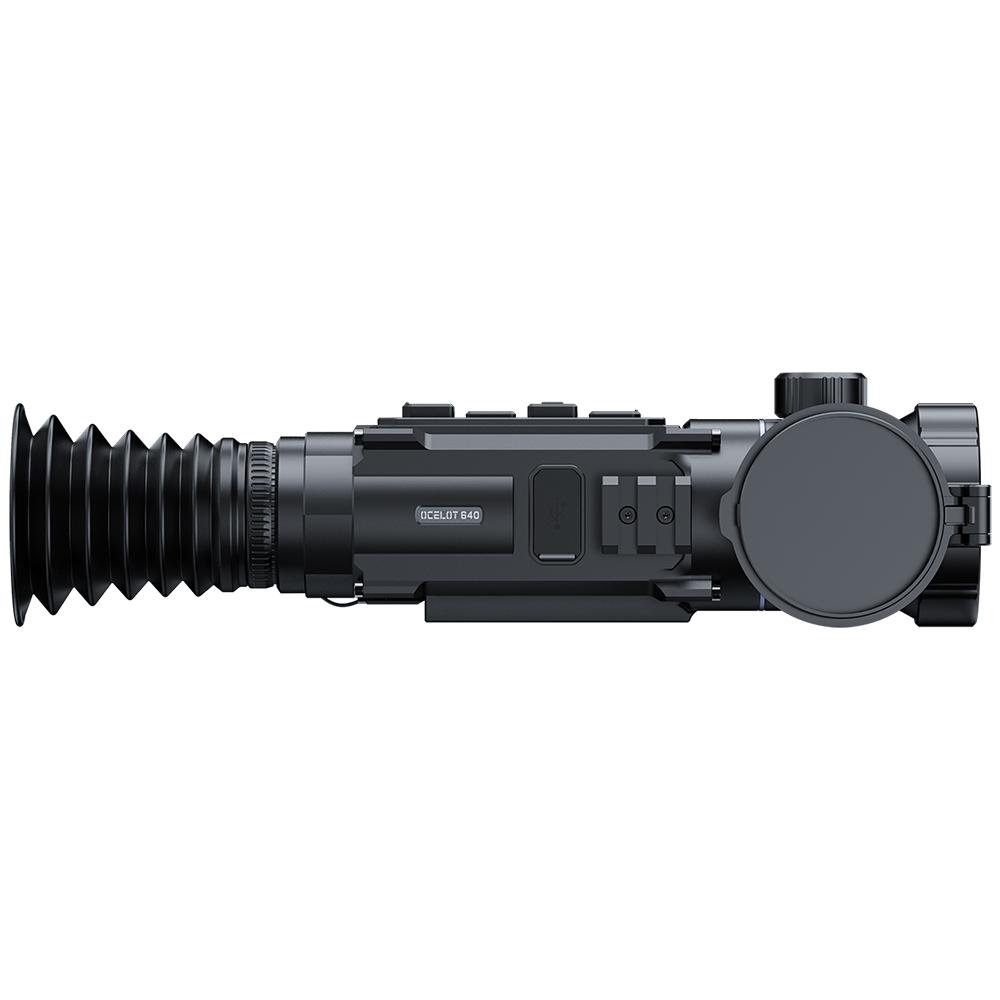

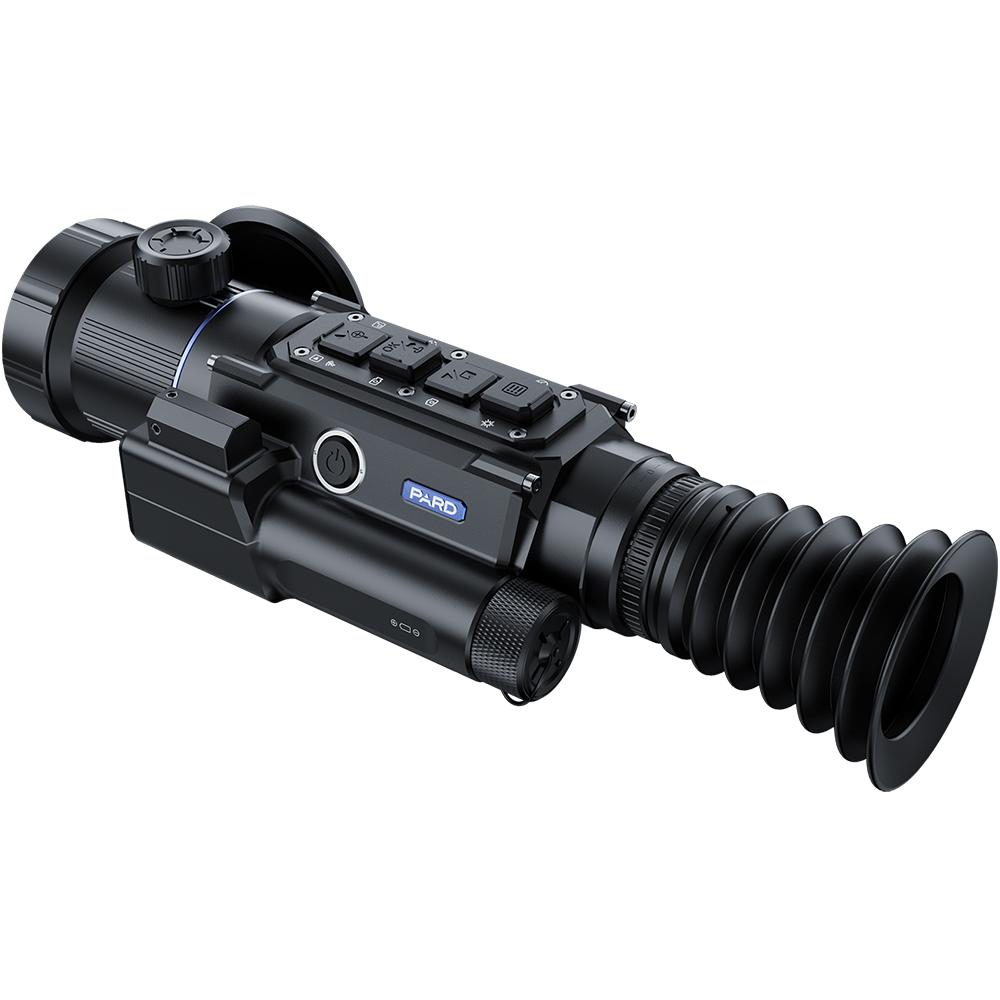

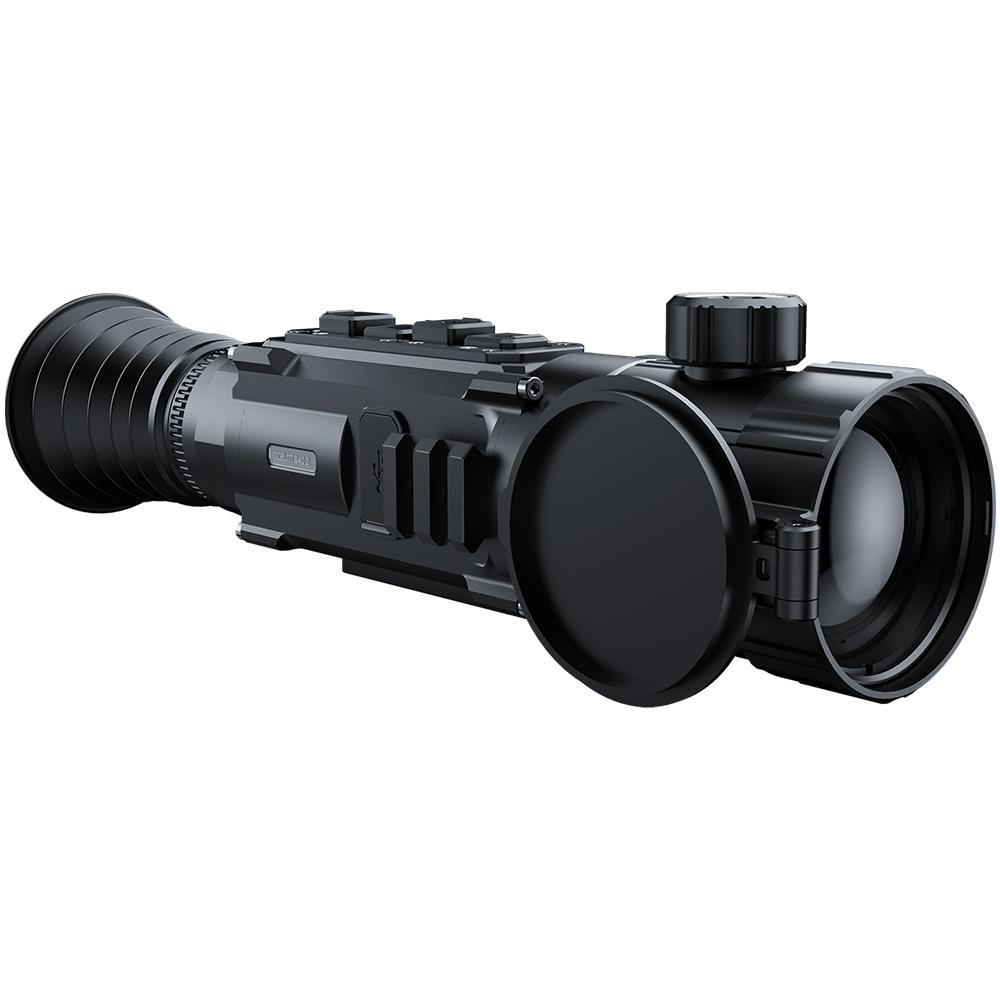

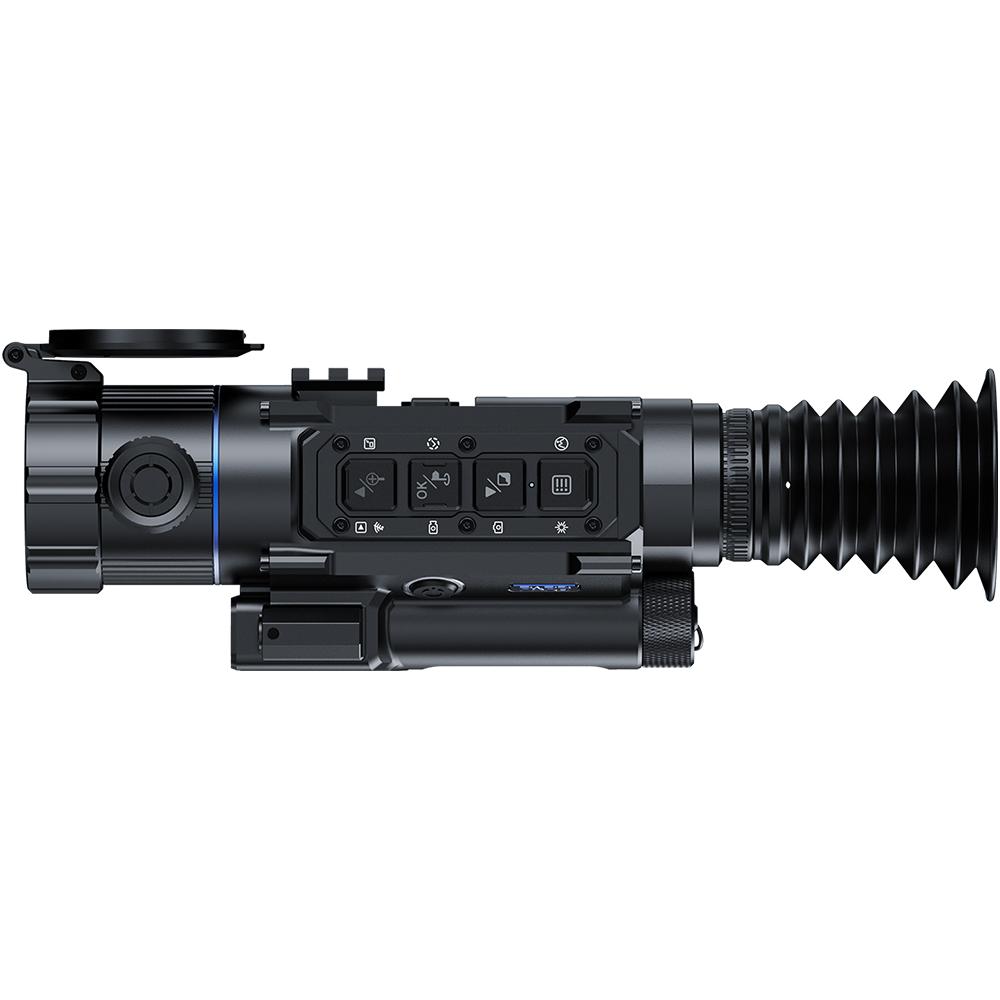

Pard Ocelot Thermal Imaging Rifle Scope with LRF 640-50 50mm Lens

ITEM NUMBER:

PDOC650LRF

UPC:

850050408352

BRAND:

Pard

MFG PRODUCT #:

OC6-50/LRF

SPECIFICATIONS

BATTERY COUNT:

BATTERY RUN TIME:

6 HR

BATTERY TYPE:

LI-ION 21700*1

BRAND:

PARD

BRAND FAMILY:

OCELOT

CA PROP 65:

YES

COLOR:

BLACK

CONDITION:

NEW

COUNTRY OF ORIGIN:

CHINA

MATERIAL:

ALUMINUM

MICROPHONE:

YES

OPTICS ACTIVATION MODES:

RECOIL ACTIVATED

OPTICS APP SUPPORT:

PARDVISION 2

OPTICS CLASS:

THERMAL IMAGING

OPTICS FINISH:

ANODIZED

OPTICS LENGTH:

7.2"

OPTICS MOUNTING SYSTEM:

INTEGRATED WEAVER-STYLE

OPTICS OBJECTIVE:

25/50

OPTICS SHOCKPROOF:

YES

OPTICS TYPE:

THERMAL RIFLE SCOPE

THERMAL BLUETOOTH:

THERMAL BORESIGHT ADJ:

DIGITAL CONTROLLED

THERMAL CVBS OUTPUT:

YES (VIA USB)

THERMAL DETECTOR TYPE:

UNCOOLED VOX

THERMAL DIGITAL ZOOM:

2X 4X 6X 8X

THERMAL DISPLAY / MONITOR TYPE:

IPS

THERMAL DISPLAY RESOLUTION:

800 X 800

THERMAL EYE RELIEF:

100MM

THERMAL FOV DEG:

14.0° X 7.0°

THERMAL HUMAN DETECT RANGE:

1200 / 2600 YDS

THERMAL IMAGING PALETTES:

6 COLOR

THERMAL MAGNIFICATION:

2.5X

THERMAL MULTI-LANGUAGE MENU:

YES

THERMAL NETD:

<20 MK

THERMAL OBJECTIVE LENS (FOCAL LENGTH):

25MM / 50MM

THERMAL OPERATING TEMPERATURE:

-22 TO 131°F / -30 TO 55°C

THERMAL OPTICS WI-FI:

YES

THERMAL PIP MODE:

YES

THERMAL POWER SUPPLY:

USB-C EXTERNAL

THERMAL RANGEFINDER:

1200 YD

THERMAL RECORDING TYPE:

ON-BOARD VIDEO AND AUDIO & STILL IMAGES

THERMAL RETICLE:

MULTIPLE COLORS AND PATTERNS

THERMAL SCENE MODES:

CITY/RAIN/FOREST

THERMAL SENSOR FRAME (REFRESH) RATE:

50 HZ

THERMAL SENSOR PIXEL INTERVAL:

12 UM

THERMAL SENSOR RESOLUTION:

640 X 512

THERMAL STANDBY MODE:

YES

THERMAL STORAGE:

128 GB

THERMAL TEMP SPOT TRACKING:

YES

THERMAL VIDEO RECORDING RESOLUTION:

768X768

WARRANTY:

MFG 3 YEAR LIMITED

WATERPROOF:

IP67

WEIGHT:

25 OZ

DESCRIPTION

The Ocelot has a 640x512 sensor resolution. It also features a 12µm pixel pitch which is a measurement of the distance between the pixels of the digital image. Another important technical specification is the Noise Equivalent Temperature Difference (NETD) rating. One of the most important technical specifications for any thermal device is the Noise Equivalent Temperature Difference (NETD) rating. NETD indicates how small of a thermal difference the device can detect in the environment. The smaller the NETD rating, the more sensitive the device is. The Ocelot is an industry leading ≤20mK. Designed with 100mm of eye relief, the Ocelot ensures a safer shooting experience and reduces peripheral light.
