Dark30 Defiance LS 384 PTZ Thermal Camera Vehicle Mounted
ITEM NUMBER:
ISDT27001
UPC:
810119012814
BRAND:
Dark30
MFG PRODUCT #:
DT27001
SPECIFICATIONS
BRAND:
DARK30
BRAND FAMILY:
DEFIANCE
CA PROP 65:
YES
COLOR:
BLACK
CONDITION:
NEW
MATERIAL:
ALUMINUM
OPTICS APP SUPPORT:
YES
OPTICS CLASS:
THERMAL IMAGING
OPTICS MOUNTING SYSTEM:
VEHICLE MOUNTED
OPTICS OBJECTIVE:
32
OPTICS TYPE:
THERMAL CAMERA
THERMAL DETECTOR TYPE:
12UM
THERMAL DIGITAL ZOOM:
1-8X
THERMAL DISPLAY / MONITOR TYPE:
LCD
THERMAL DISPLAY RESOLUTION:
1920 X 1080
THERMAL FOV DEG:
HORIZONTAL 20° VERTICAL
THERMAL HUMAN DETECT RANGE:
1250 YDS
THERMAL IMAGING PALETTES:
5
THERMAL NETD:
<40 MK
THERMAL OPERATING TEMPERATURE:
-4°F TO 122°F
THERMAL OPTICS WI-FI:
YES
THERMAL POWER SUPPLY:
12V DC
THERMAL SENSOR FRAME (REFRESH) RATE:
60 HZ
THERMAL SENSOR PIXEL INTERVAL:
8 - 14 UM
THERMAL SENSOR RESOLUTION:
384 X 288
THERMAL STORAGE:
TF CARD SLOT / 2 HDMI PORTS / 2 DC PORTS
WARRANTY:
MFG 5 YEAR
WATERPROOF:
IP66
WEIGHT:
111 OZ
DESCRIPTION

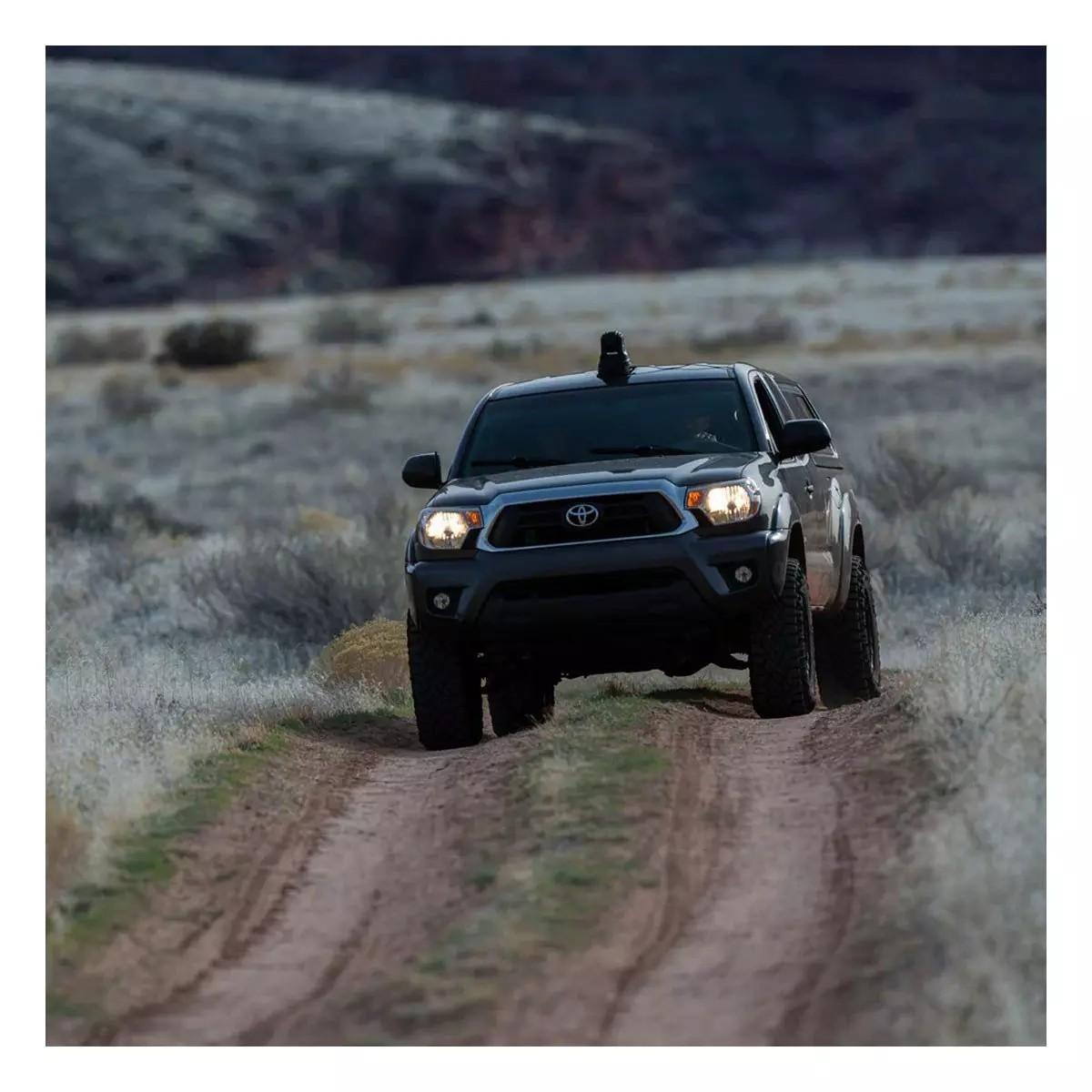

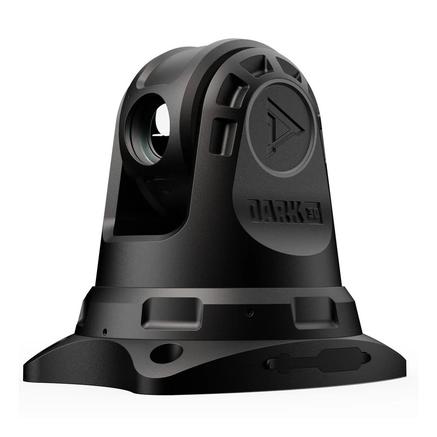

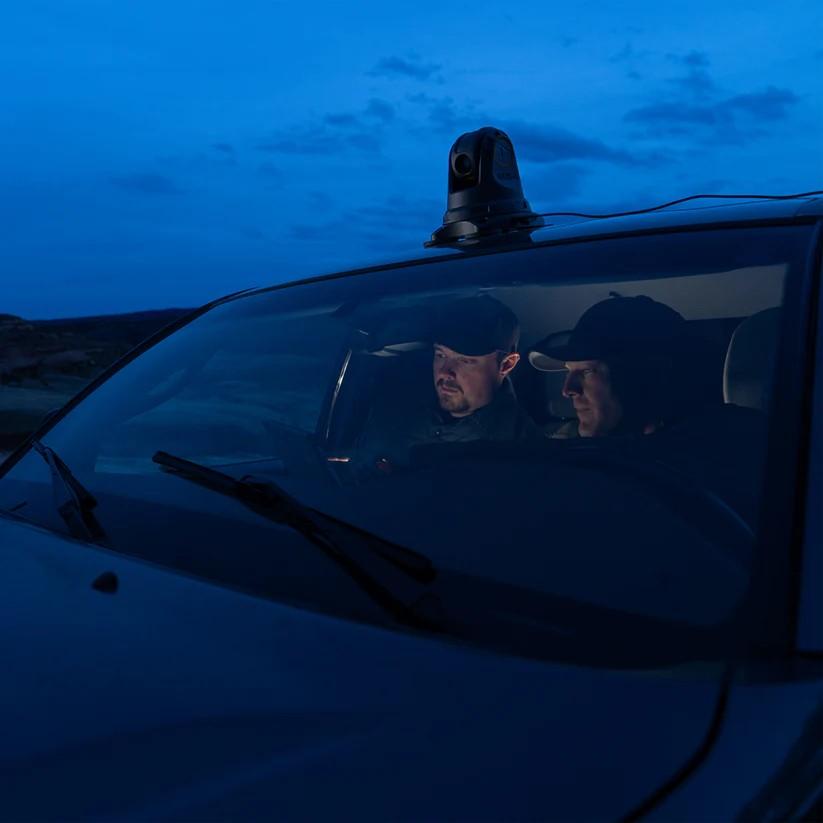

The Dark30 Defiance LS 384 PTZ is a rugged, vehicle-mounted thermal camera designed for trucks and UTVs. Featuring a 384x288 thermal sensor, 360-degree endless panning, and versatile mounting options, it allows users to safely track predators, monitor livestock, and patrol perimeters from inside the vehicle.
Features :
- Imaging: Equipped with a 384x288 resolution thermal sensor (<40 mK NETD) for exceptional clarity in pitch darkness, fog, and dense brush.
- PTZ Control: Infinite 360-degree panning and variable speed remote control for dynamic, sweeping coverage.
- Detection Range: Capable of detecting heat signatures up to 1,250 yards away.
- Versatile Mounting: Can be easily attached using heavy-duty 100lb magnets, suction cups for temporary placement, or bolts for a permanent installation.
- Power & Durability: Powered directly by the vehicle’s 12V DC system and features a rugged, water-resistant housing

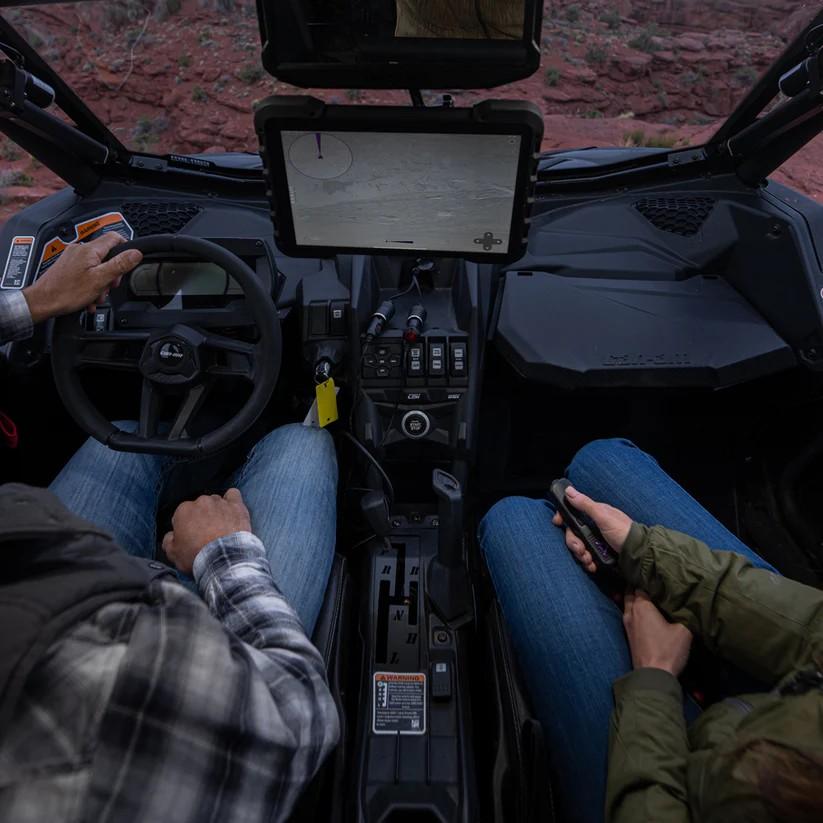

- In-Cabin Viewing: Includes a 10.1-inch, low-latency HDMI viewing screen that mounts inside the cabin for real-time observation.
- App Integration: Supports control via the Dark 30 mobile application.
- Smart Functions: Includes a convenient "Sleep Mode" and "Return to Home" function to easily reset the camera’s default position
- The LS 384 is widely utilized by ranchers, hunters, and border/perimeter defense agencies. It serves as an excellent mid-range option for spotting hogs, coyotes, or livestock without relying on headlights or visible-light cameras.
Included in BOX :
- Dark 30 Defiance-640 PTZ 32mm Thermal Camera
- 1 x 4m long HDMI cable
- 1 x 4m long DC cable
- 1 x 1 splits 2 car cigarette adaptor
- 4 x bolt and nut
- 4 x Suction Cup feet
- 4 x Magnetic feet
- 1 x Remote Control
- IOS / Android APP
- 1X Protective hard case
- 1X Torx Key
- 1X Nut Driver
- 1X Suction Cup Mount
- 1X 11in Flex Arm
- 1X Bar Clamp
- 1 X 1/4-20 coupler
- 1X 10.1in Screen
California Proposition 65 WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
