Dark30 Defiance 640 PTZ Thermal Camera Vehicle Mounted
ITEM NUMBER:
ISDT27000
UPC:
810119012838
BRAND:
Dark30
MFG PRODUCT #:
DT27000
SPECIFICATIONS
BRAND:
DARK30
BRAND FAMILY:
DEFIANCE
CA PROP 65:
YES
COLOR:
BLACK
CONDITION:
NEW
MATERIAL:
ALUMINUM
OPTICS APP SUPPORT:
YES
OPTICS CLASS:
THERMAL IMAGING
OPTICS MOUNTING SYSTEM:
VEHICLE MOUNTED
OPTICS OBJECTIVE:
32
OPTICS TYPE:
THERMAL CAMERA
THERMAL DETECTOR TYPE:
12UM
THERMAL DIGITAL ZOOM:
1-8X
THERMAL DISPLAY / MONITOR TYPE:
LCD
THERMAL FOV DEG:
HORIZONTAL 20° VERTICAL
THERMAL HUMAN DETECT RANGE:
1250 YDS
THERMAL IMAGING PALETTES:
5
THERMAL NETD:
<30MK
THERMAL OPERATING TEMPERATURE:
-4°F TO 122°F
THERMAL OPTICS WI-FI:
YES
THERMAL POWER SUPPLY:
12V DC
THERMAL SENSOR FRAME (REFRESH) RATE:
60 HZ
THERMAL SENSOR PIXEL INTERVAL:
8 - 14 UM
THERMAL SENSOR RESOLUTION:
640 X 480
WARRANTY:
MFG 5 YEAR
WATERPROOF:
IP66
WEIGHT:
111 OZ
DESCRIPTION

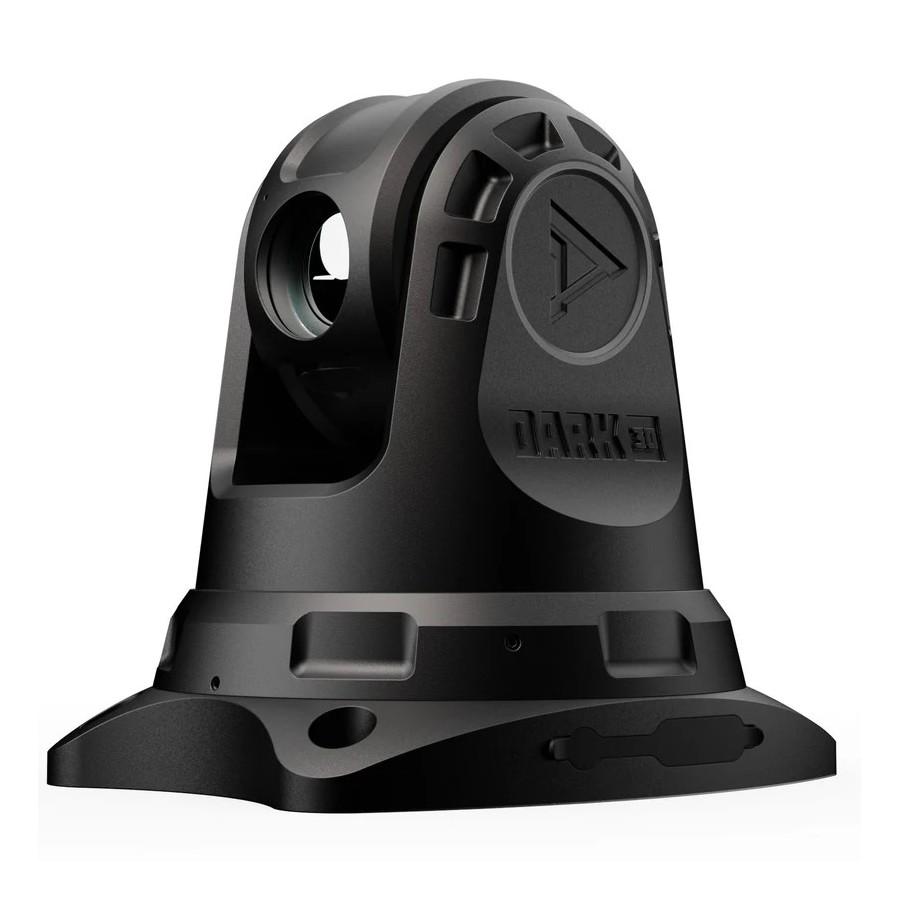

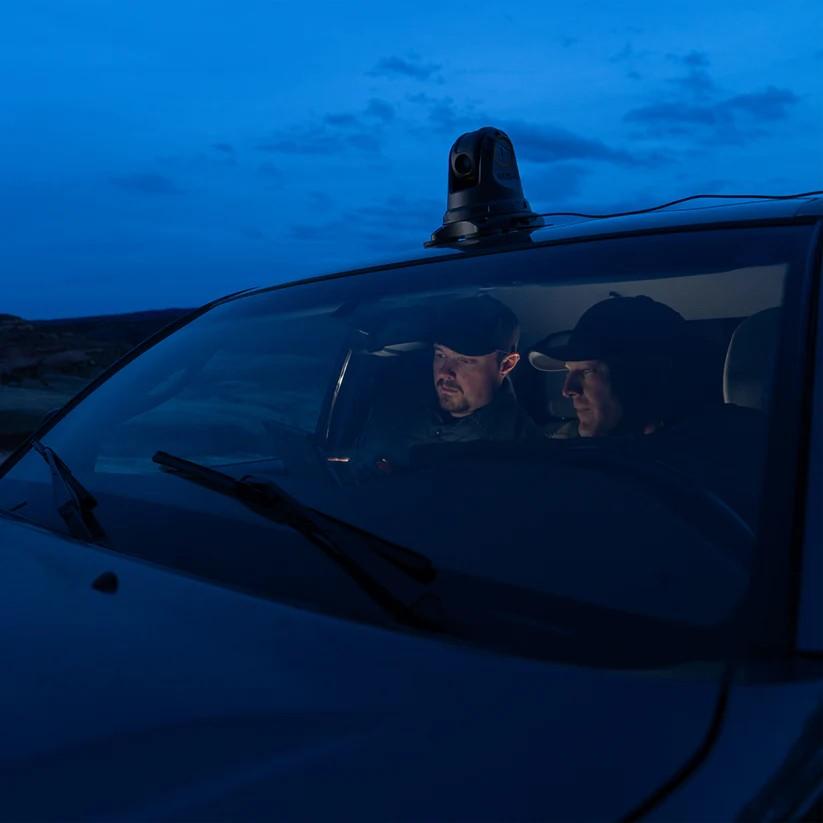

The Dark 30 Defiance 640 PTZ (DT27000) is an advanced vehicle-mounted thermal camera designed for mobile scouting and wildlife management. It overcomes the limitations of handheld devices and thermal-blocking window glass by mounting directly to the roof of a vehicle, providing a full 360-degree view in total darkness.
Features :
- High-Resolution Thermal Imaging: Features a 640x480 resolution sensor (<30 mK NETD) and a 32mm Germanium lens for unparalleled image clarity
- Pan, Tilt, and Zoom (PTZ): Offers infinite 360-degree panning and continuous tilting (straight down to 45 degrees above horizontal), along with 1–8x digital zoom.
- Long-Range Detection: Capable of detecting heat signatures and targets up to 1,250 yards away.
- Versatile Mounting: Includes hardware for secure permanent bolting, heavy-duty suction cups, or 100lb pull magnets.

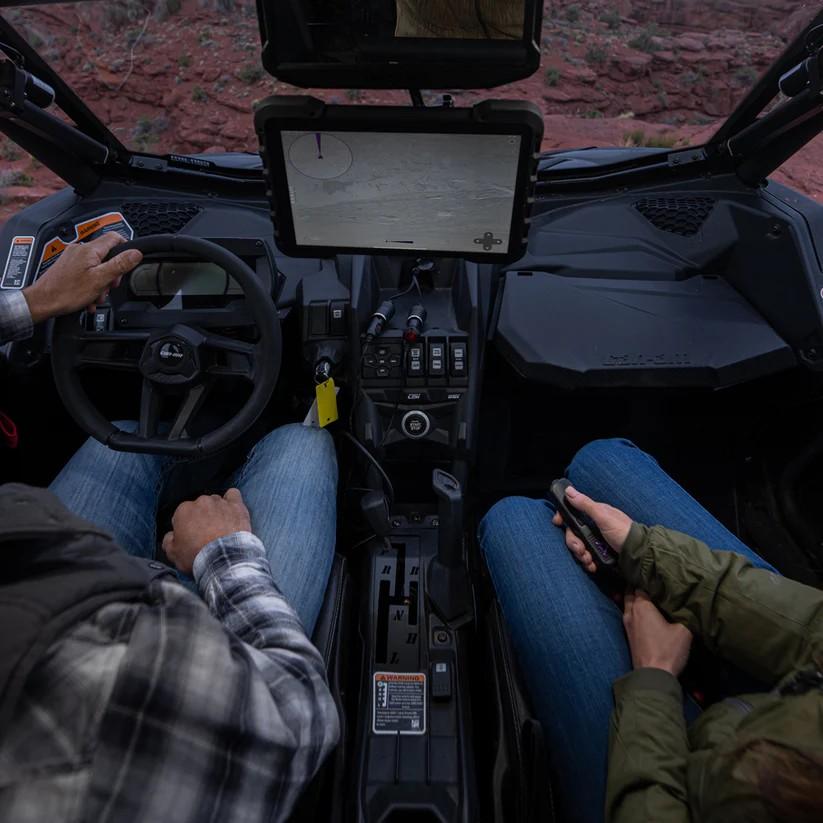

- App and Display Control: Can be operated using a low-latency 10.1-inch wired LCD screen (powered by the vehicle's 12V outlet) or wirelessly via the Dark 30 mobile app on iOS and Android.
- Rugged Design: Built for harsh outdoor environments with IP66 water resistance.

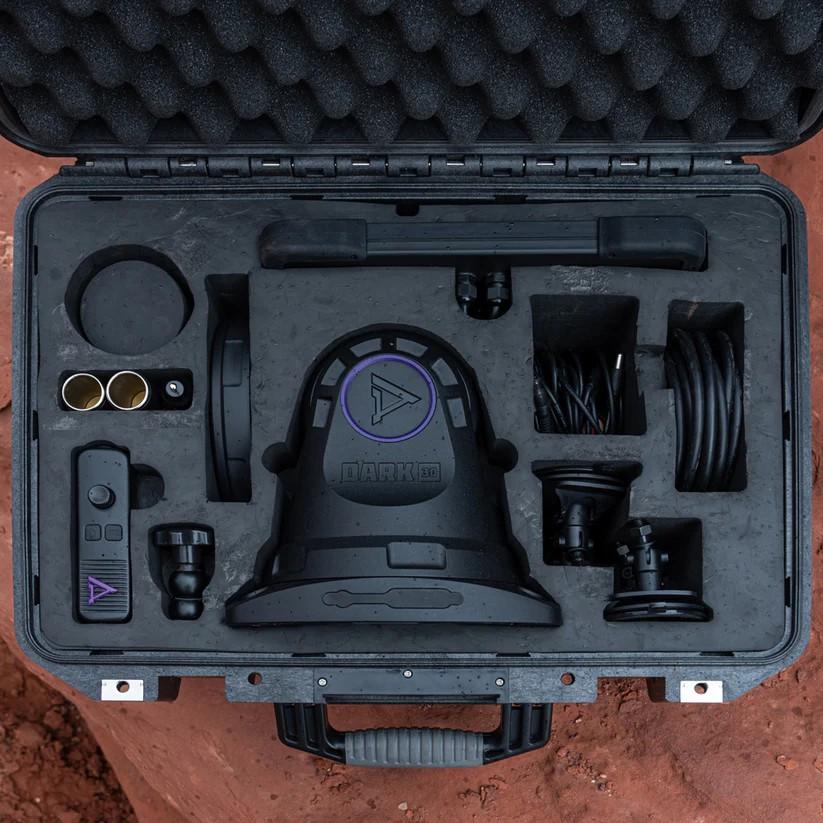

Included in BOX :
- Dark 30 Defiance-640 PTZ 32mm Thermal Camera
- 1 x 4m long HDMI cable
- 1 x 4m long DC cable
- 1 x 1 splits 2 car cigarette adaptor
- 4 x bolt and nut
- 4 x Suction Cup feet
- 4 x Magnetic feet
- 1 x Remote Control
- IOS / Android APP
- 1X Protective hard case
- 1X Torx Key
- 1X Nut Driver
- 1X Suction Cup Mount
- 1X 11in Flex Arm
- 1X Bar Clamp
- 1 X 1/4-20 coupler
- 1X 10.1in Screen
