EOTech HWS EXPS3 DCR Reflex Sight - Single CR123 battery DCR reticle with 1 MOA dot QD

ITEM NUMBER:
YZEXPS3DCR
UPC:
672294601036
BRAND:
EOTech
MFG PRODUCT #:
EXPS3-DCR
SPECIFICATIONS
BATTERY RUN TIME:
1000 HRS
BATTERY TYPE:
CR123
BRAND:
EOTECH
BRAND FAMILY:
HWS EXPS3
CA PROP 65:
YES
COLOR:
BLACK
COMPLIANCE ITEM TYPE:
SIGHTS
CONDITION:
NEW
COUNTRY OF ORIGIN:
USA
MATERIAL:
ALUMINUM
OPTICS BRIGHTNESS:
20 SETTINGS (+10 NV)
OPTICS CLASS:
COMPACT
OPTICS EYE RELIEF:
UNLIMITED
OPTICS FINISH:
ANODIZED
OPTICS FOGPROOF:
YES
OPTICS ILLUMINATED RETICLE:
YES
OPTICS INCREMENTAL ADJUSTMENT:
0.5 MOA
OPTICS LENGTH:
3.8"
OPTICS LENS COATING:
MULTI-COATED
OPTICS MOUNTING SYSTEM:
M1913 PICATINNY
OPTICS POWER CATEGORY:
1
OPTICS POWER MAGNIFICATION:
1X
OPTICS POWER RANGE:
1X
OPTICS RETICLE:
68 MOA RING & 1 MOA DOT
OPTICS RETICLE COLORS:
RED
OPTICS SHOCKPROOF:
YES
OPTICS TURRET TYPE:
EXPOSED
OPTICS TYPE:
REFLEX SIGHT
WARRANTY:
MFG LIMITED LIFETIME
WATERPROOF:
YES
WEIGHT:
11.2 OZ
DESCRIPTION

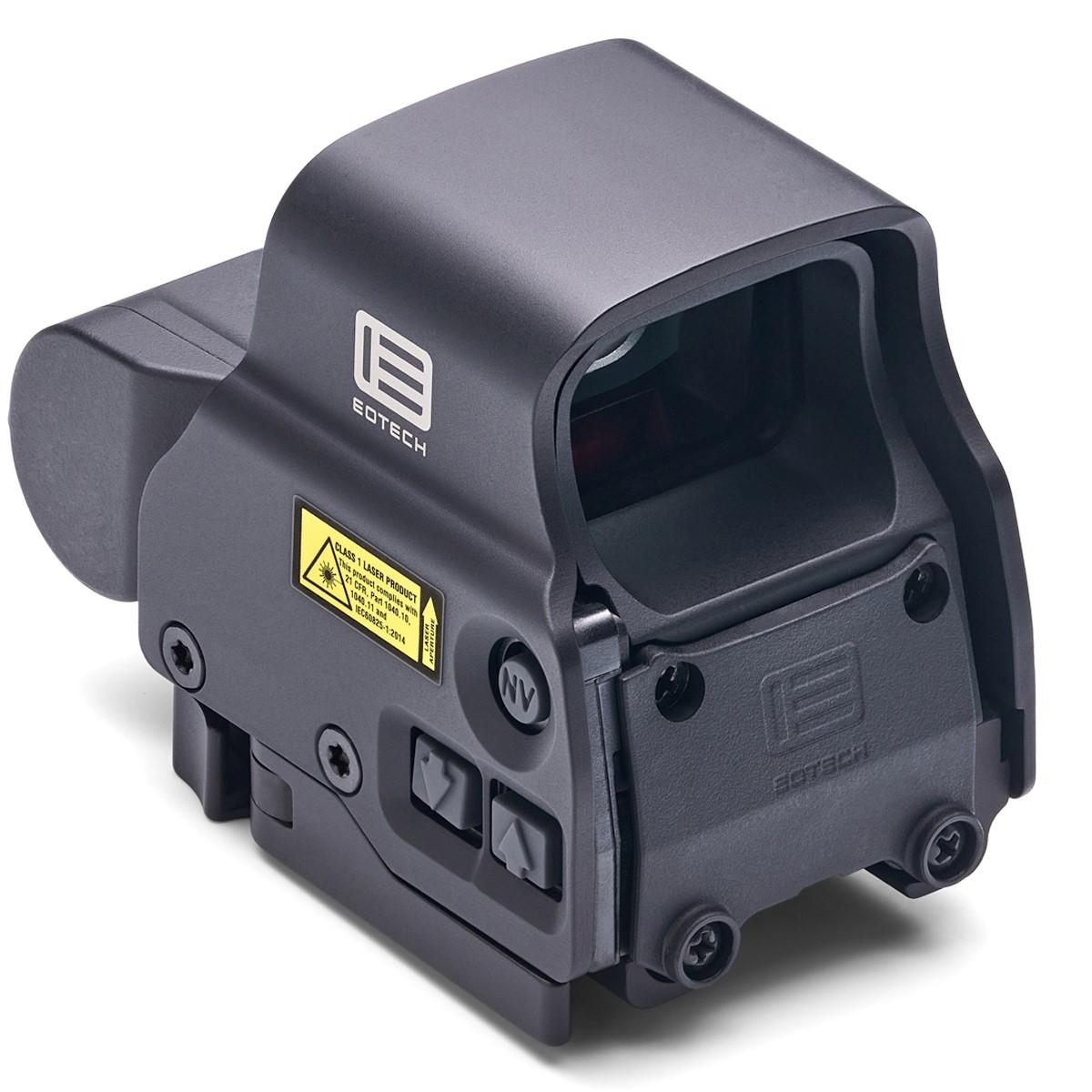

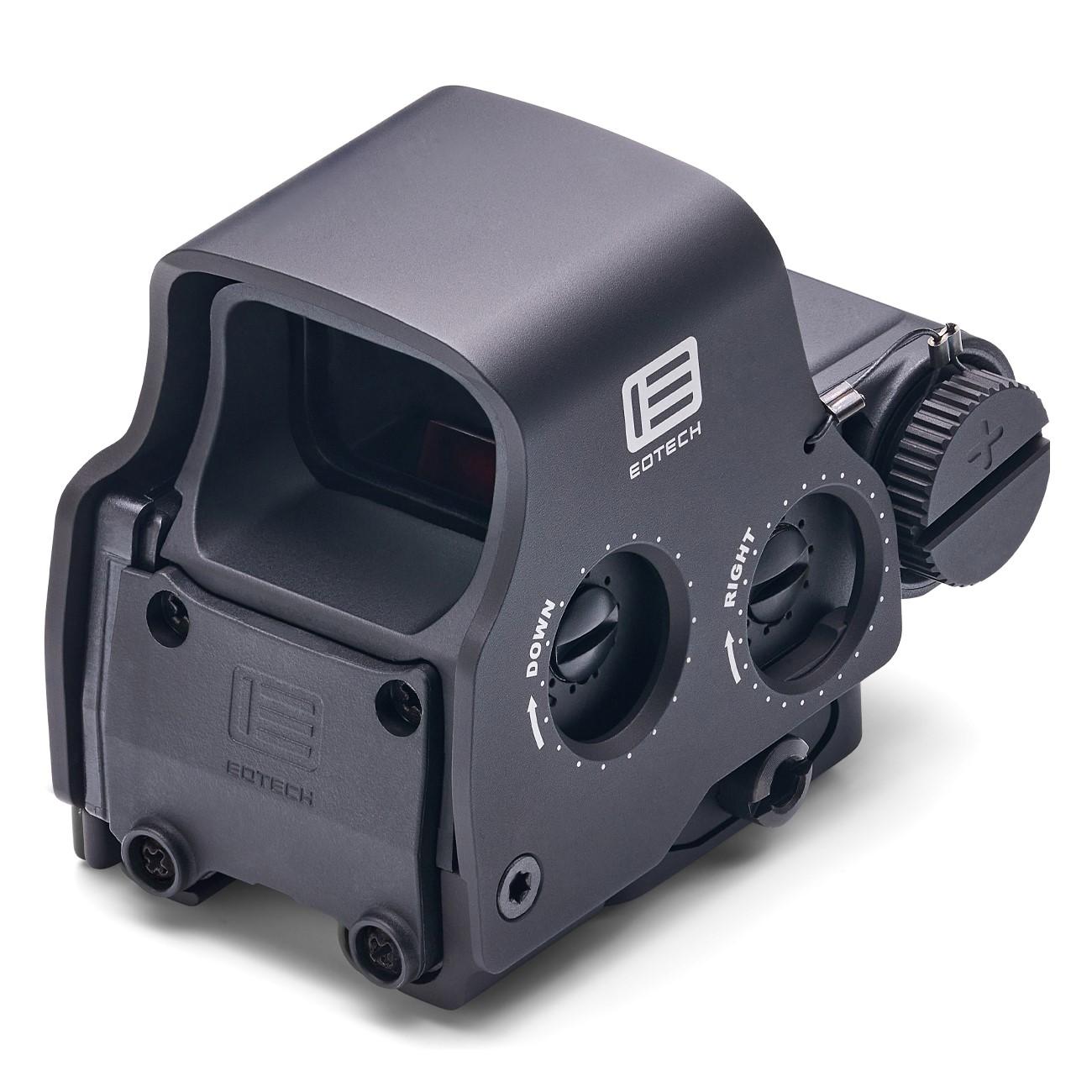

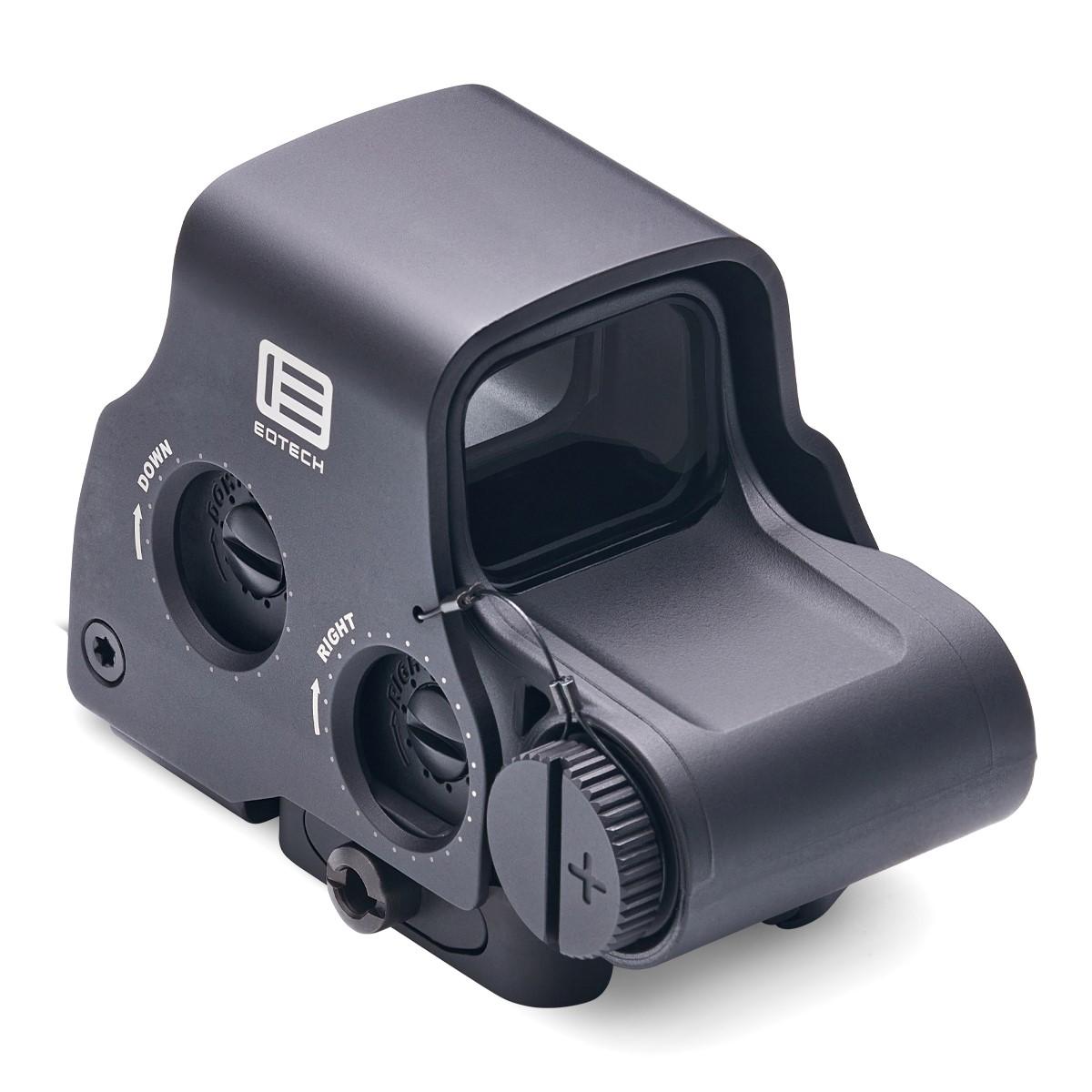

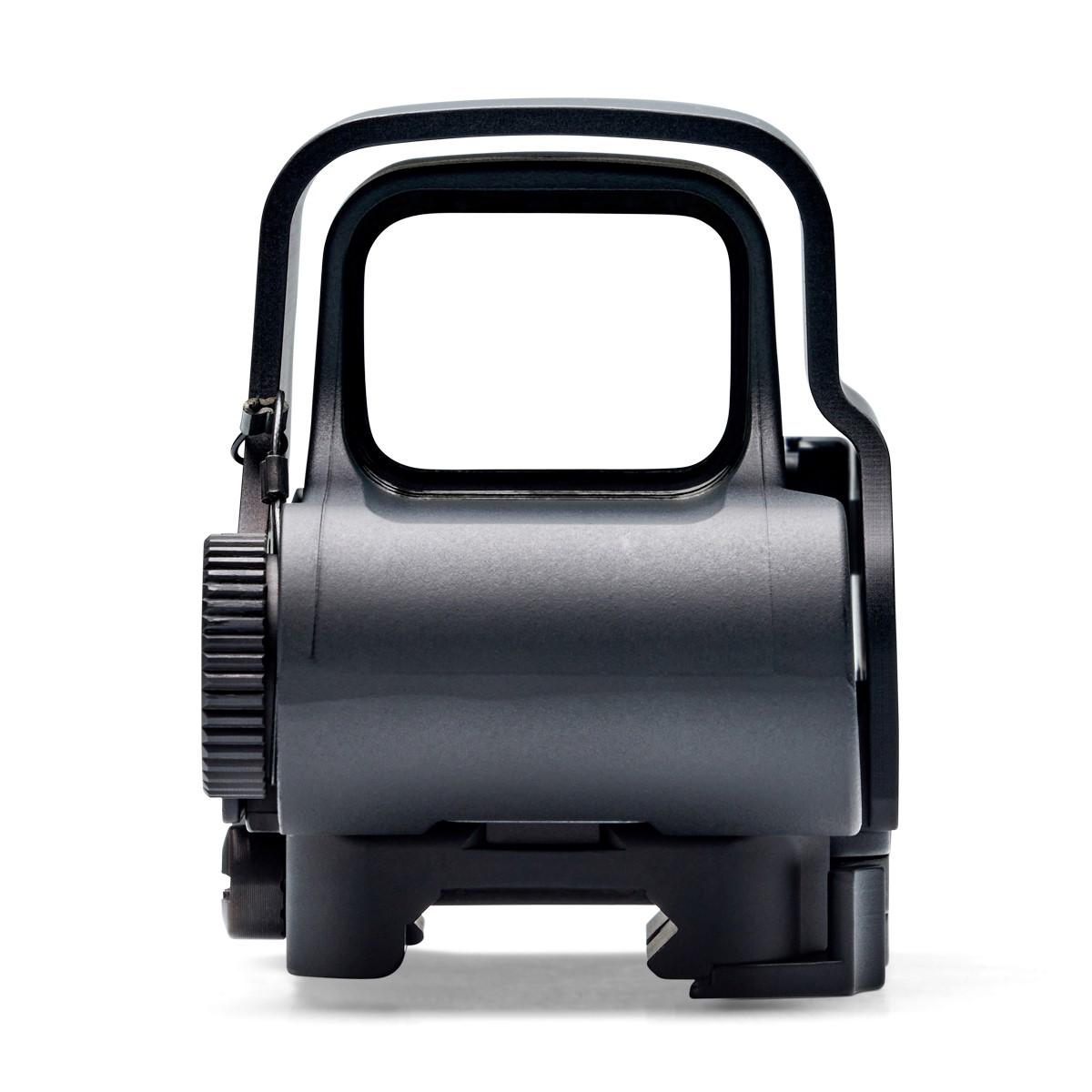

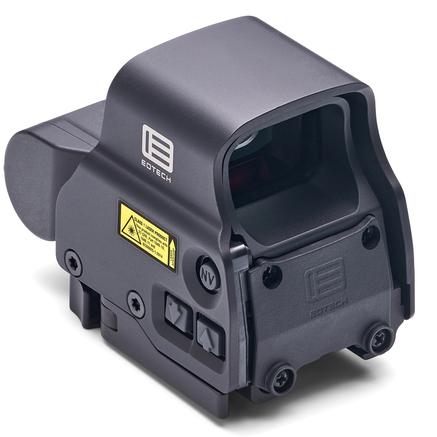

The EOTECH EXPS3-DCR features the Danger Close Reticle (DCR) that provides fast and accurate shots at typical distances but also an effective close combat aiming point. Housed in the popular EXPS form factor, offering true two eyes open shooting for fast target acquisition, night vision compatible settings and a 7mm raised quick detach base for lower 1/3 iron sight co-witness.

The DCR Reticle is a modification of the popular "speed ring" circle/dot reticle but addresses the point of aim (POA), point of impact (POI) shift that occurs with close engagements when the primary dot is zeroed at distance. The 68MOA width is maintained but the top of the circle is removed providing a cleaner look. The bottom of the ring is also removed and replaced with an easy to find chevron providing that height over bore adjustment needed for dangerously close shot placement. With a .223/5.56 rifle zeroed at 50 yards, the DCR would provide three confident aiming points to include a long distance 200-yard zero as well as a 7-yard solution.

Included in the box:

  • HWS EXPS3™ DCR
  • Quick-Start Guide
  • Warranty Card
  • CR123 Battery

California Proposition 65 WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
