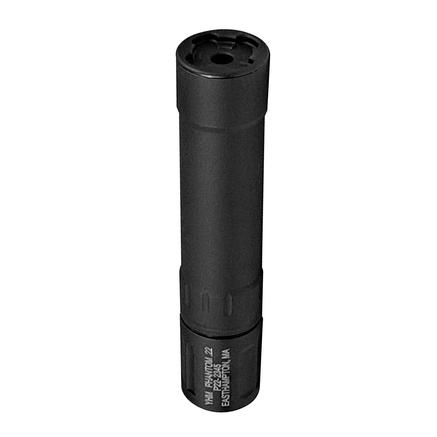

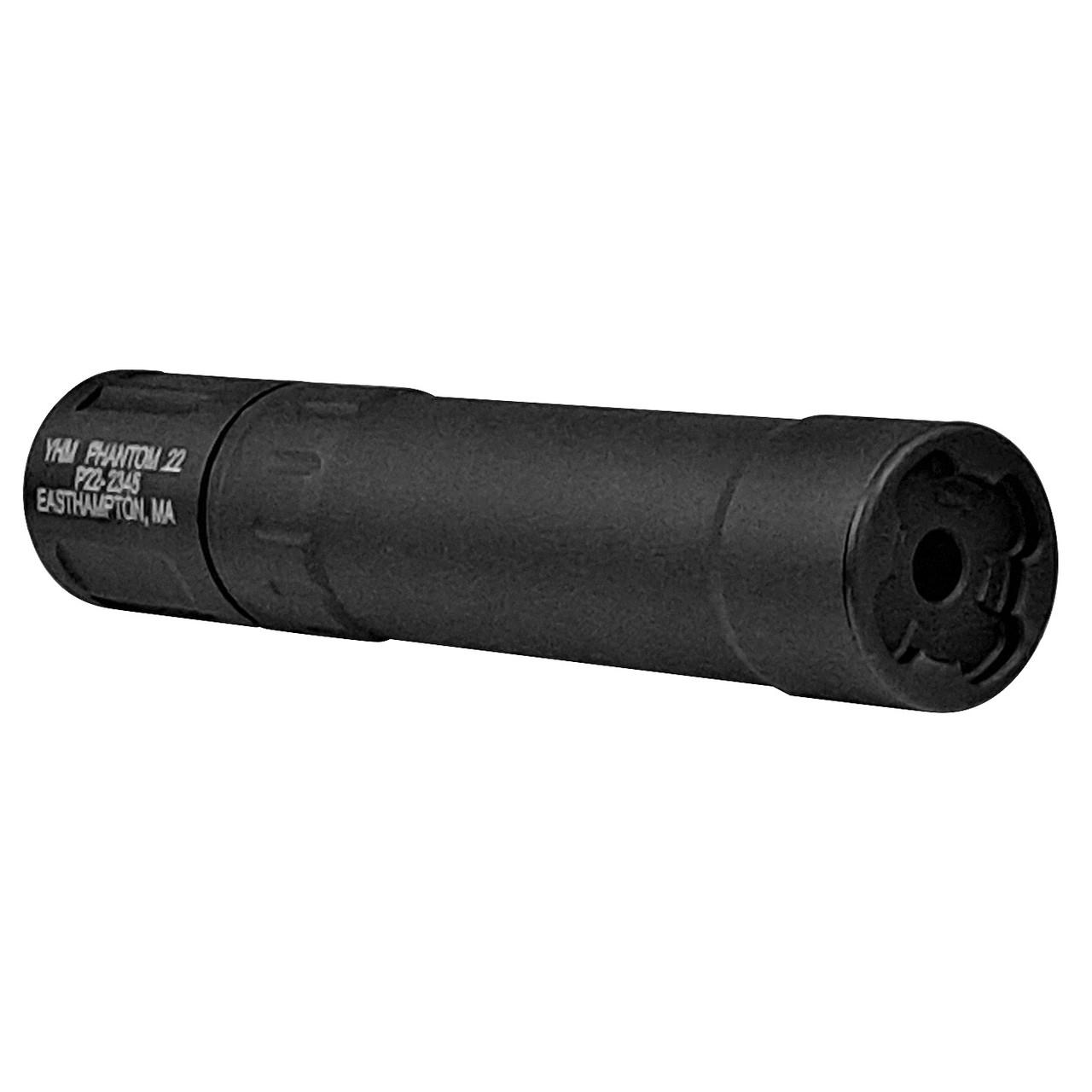

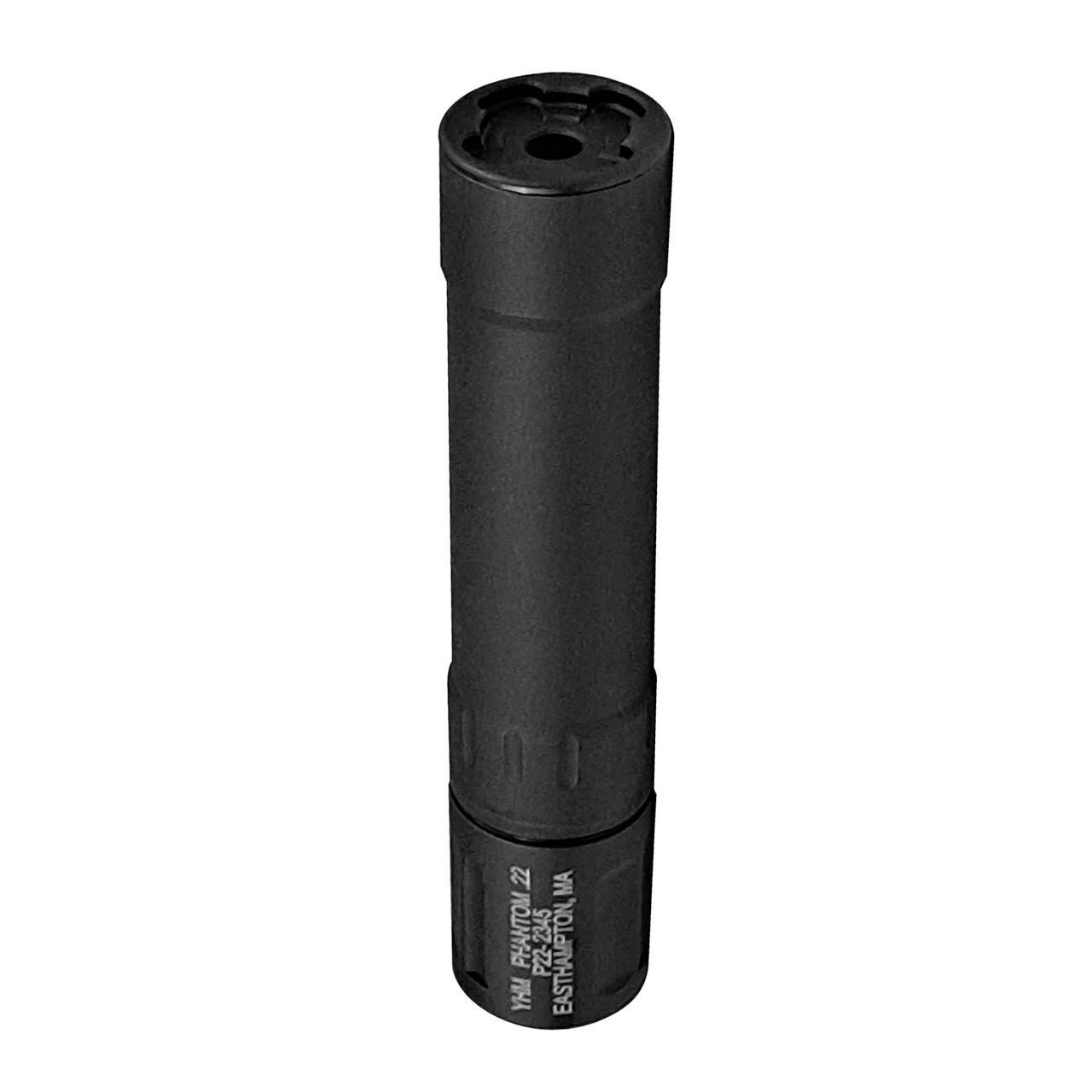

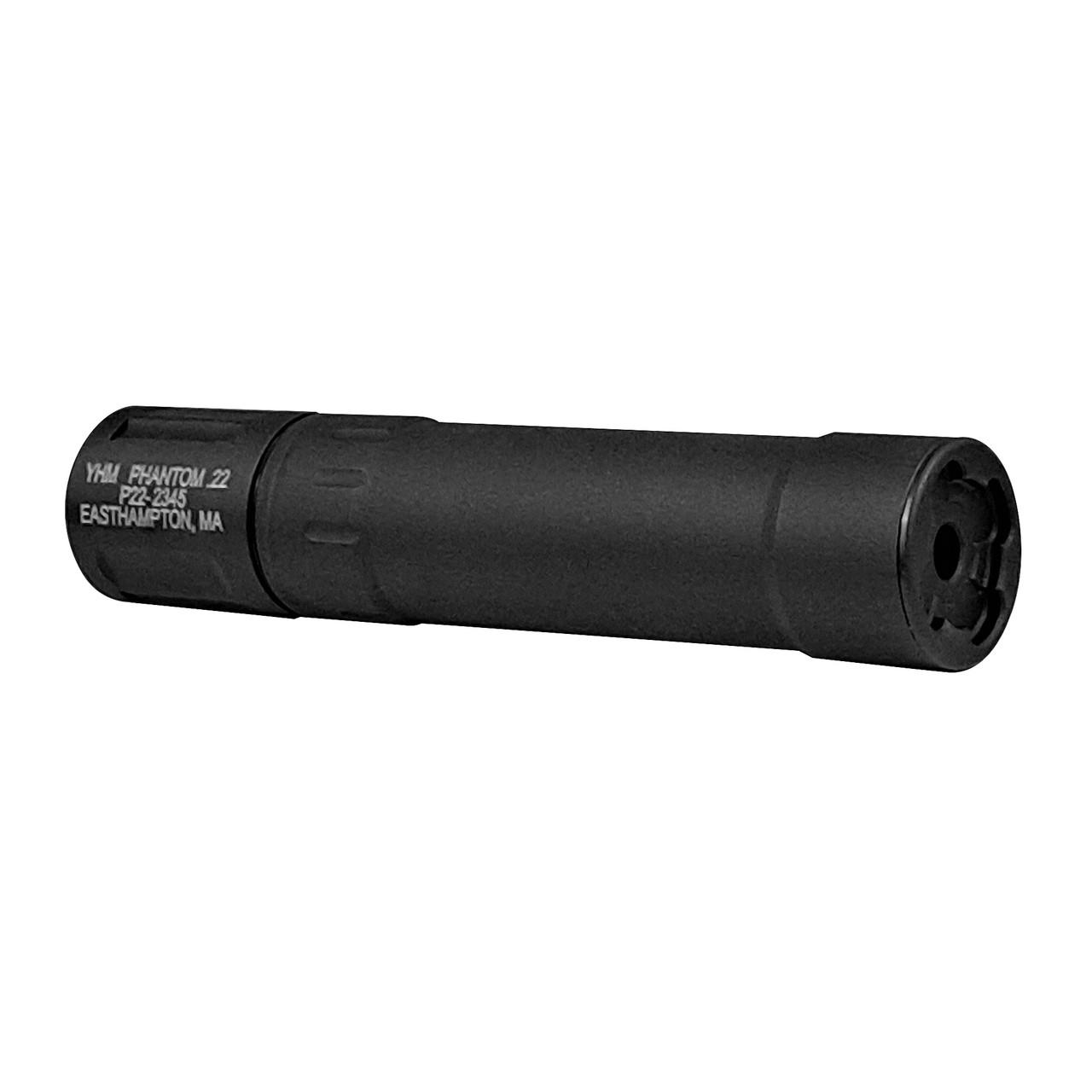

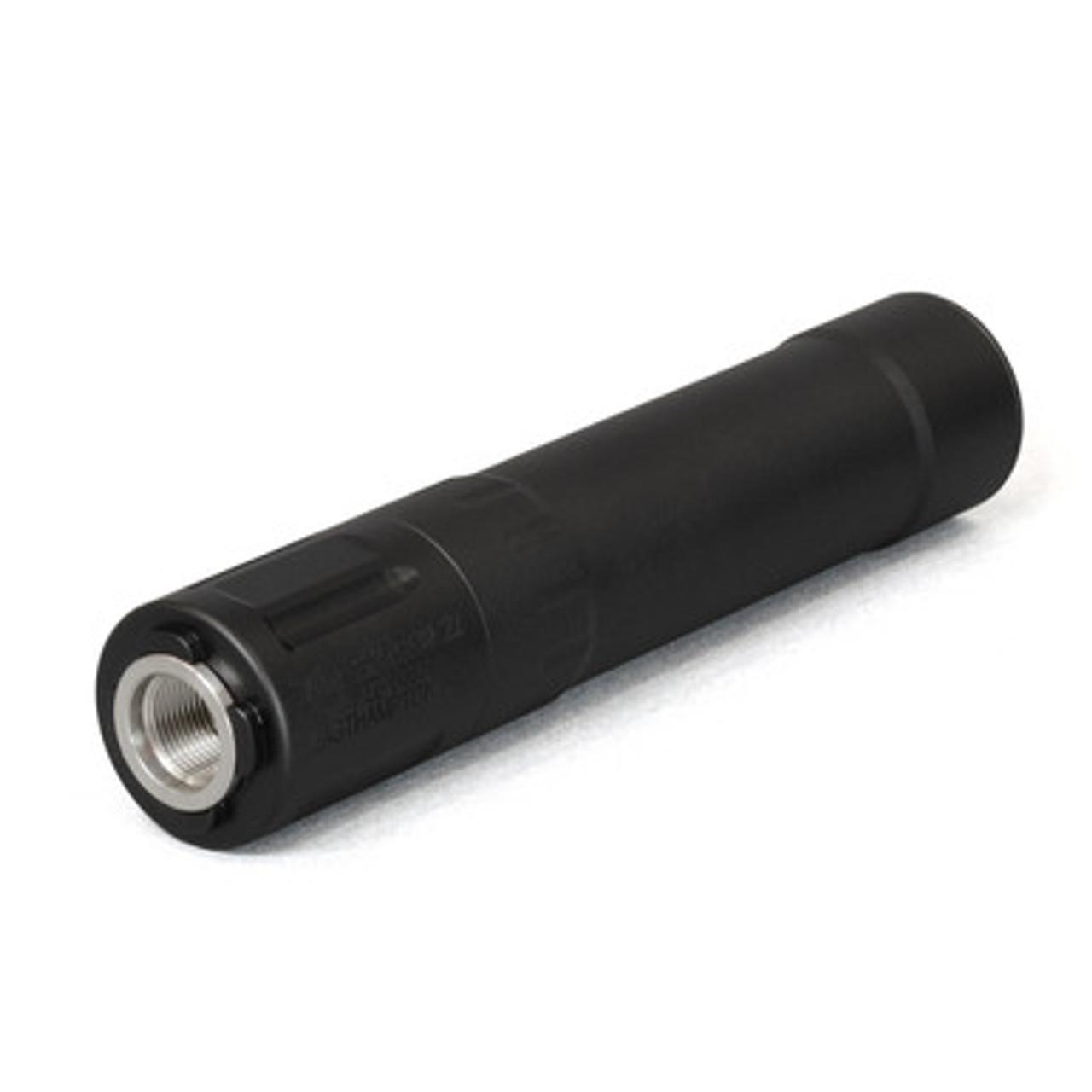

YHM Phantom Direct Thread .22 Sound Suppressor .22 Cal Aluminum/Stainless Steel Mount 1/2"-28 Black

ITEM NUMBER:

YEYHM4380

UPC:

841812101222

BRAND:

Yankee Hill Machine

MFG PRODUCT #:

YHM-4380

SPECIFICATIONS

ATTACHMENT TYPE:

DIRECT THREAD

BAFFLE MATERIAL:

ALUMINUM

BODY MATERIAL:

ALUMINUM

BRAND:

YANKEE HILL MACHINE

CA PROP 65:

YES

COLOR:

BLACK

COMPATIBLE CALIBERS:

17 HMR -5.7×28

CONDITION:

NEW

DIAMETER:

1.1000

FULL AUTO RATED:

YES

LENGTH:

5.5"

PRIMARY CALIBER:

22 LR

SUPPRESSOR TYPE:

SUPPRESSOR

THREAD TYPE:

1/2-28

WEIGHT:

4 OZ

DESCRIPTION

The Phantom provides superior sound reduction on both pistols and rifles thanks to a newly designed baffle system. The rear of the blast chamber serves as the takedown tool for the muzzle cap, which means you will always have the disassembly tool when you need it.
It features a shielded interlocking baffle stack made from heat treated 17-4 stainless steel, and each baffle has indexing tabs to ensure proper orientation for optimum performance.

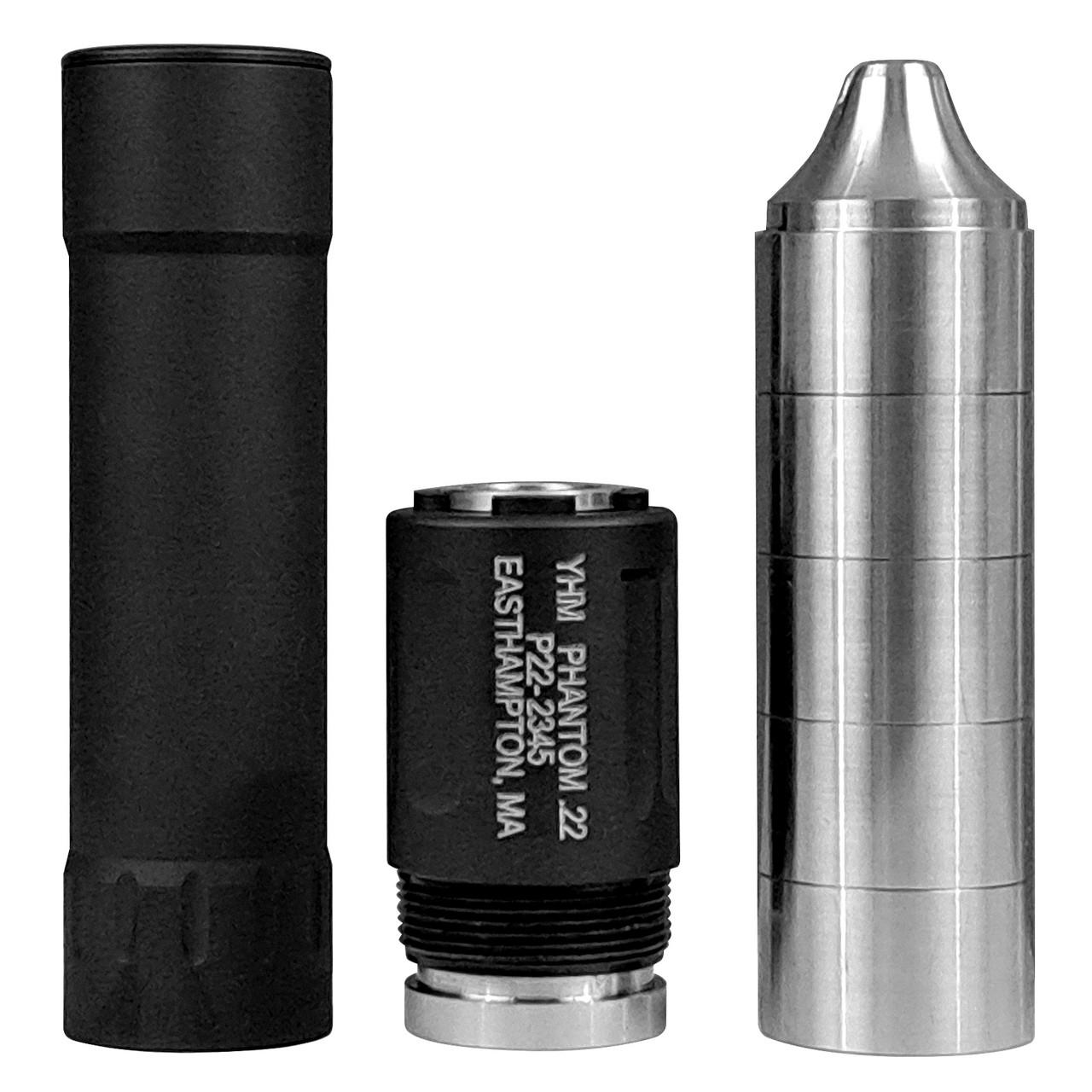

The outer assembly consists of 2 parts: the 7075-T6 aluminum blast chamber bears the serial number, and the 6061-T6 tube houses the baffle stack. The blast chamber features a stainless steel ½”-28 thread insert to prolong the life of the mounting threads. A stylish aluminum muzzle cap holds everything together.
Thanks to the combination of lightweight aluminum and strong stainless steel, the Phantom® .22 is able to handle rounds up to 5.7x28mm while weighing a mere 4 ounces.

Caliber: .22
Weight: 4 oz.
Length: 5.5”
Diameter: 1.1”
Construction: Aircraft quality aluminum & 17-4 PH SSMount: 1/2”-28 Direct Thread
Decibel Rating: 115 dB
Minimum Barrel Lengths:
.22 LR: No restrictions
.22 MAG: 10”
5.7 x 28: 10”
.17 HMR: 10”
Full Auto Rated
