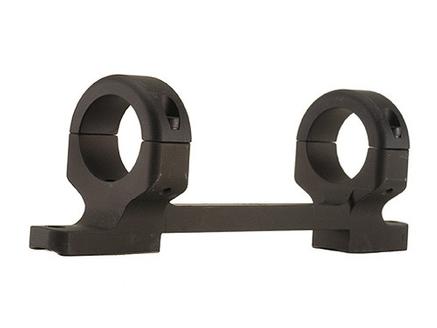

DNZ Game Reaper 1-Piece Integral Scope Mount - Remington 700 (8-40 screws) LA 30mm High Black

ITEM NUMBER:

VWL32700

UPC:

810037211771

MFG PRODUCT #:

L32700

SPECIFICATIONS

CA PROP 65:

YES

MATERIAL:

ALUMINUM

RING & MOUNT ACTION:

LONG ACTION

RING & MOUNT FINISH:

MATTE

RING & MOUNT PIECES:

1-PIECE

RING & MOUNT RING HEIGHT:

HIGH

RING & MOUNT TUBE DIAMETER:

30MM

RING & MOUNT TYPE:

INTEGRAL RINGS & BASE

DESCRIPTION

For Remington 700: Also fits the Remington model 721 and 722 & Bergara B14. Right-hand mount fits right hand firearms and left-hand mounts fit left hand firearms.

MOA Mounts are tapered down on front for long range shooting. Height will be about .03” lower on front ring than a standard mount.

Base screws are 6-48 X 1/4" long. Ring screws are 6-40 X 5/8” long. Both use a 7/64” Allen wrench.

Some of the .338 Lapua receivers have been modified at the factory and have larger base screws. The size of them is 8-40 and will use a 9/64 Allen wrench. Check your gun and see because the mount will have to be modified. Choose Model 700 (8-40 screws) if your gun uses the larger 8-40 screws.

Short action – Outside to outside of rings is 4.26” for standard ring mounts. Standard rings are .63” wide and have 2 ring screws per ring. Tactical rings are .80” wide and have 4 ring screws per ring. 4 Hole to hole spacing dimensions are .86”, 3.63”, .60”. Height of mounts from top of receiver to centerline of scope tube is – low .98”, medium 1.11”, and high 1.23”.
