Home > Catalog > Pulsar Thermion DUO Multispectral Thermal Rifle Scope DXP55 (Thermal/4k LR Daytime)

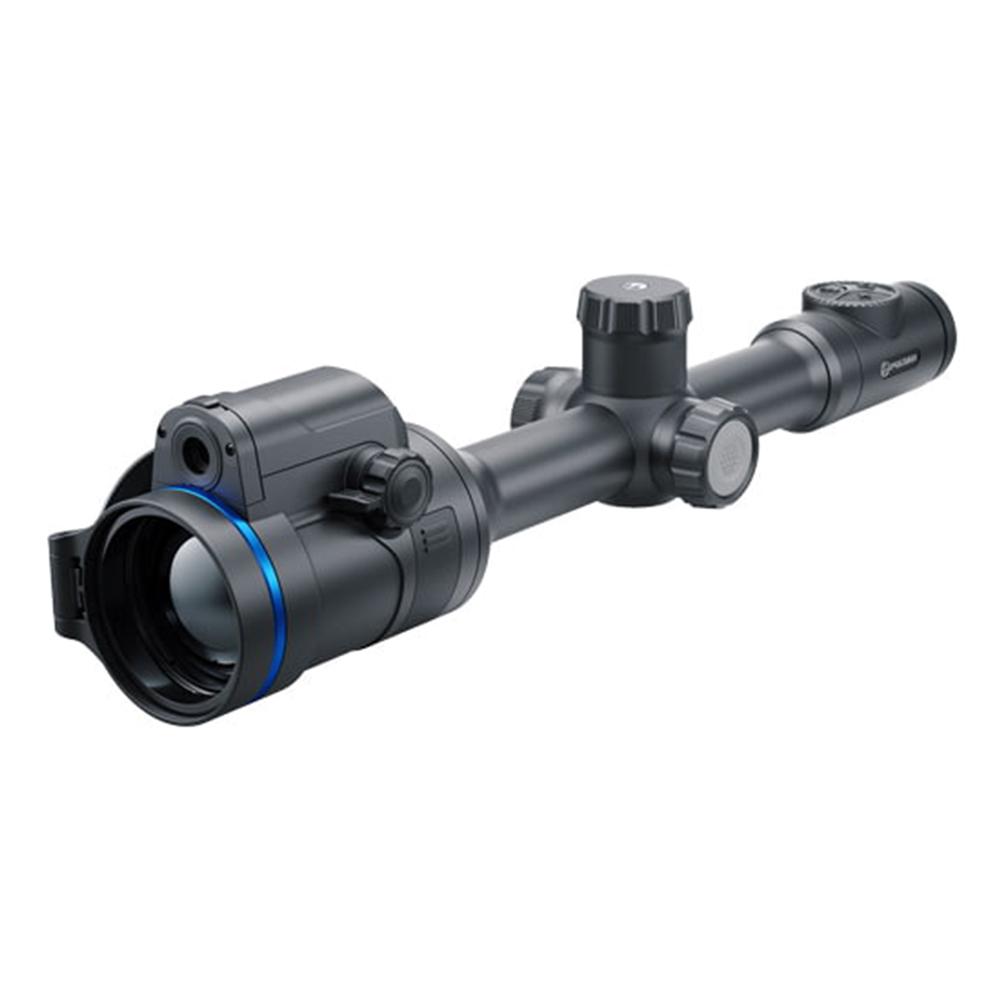

Pulsar Thermion DUO Multispectral Thermal Rifle Scope DXP55 (Thermal/4k LR Daytime)

ITEM NUMBER:
ISPL76572
UPC:
810119012319
BRAND:
Pulsar
MFG PRODUCT #:
PL76572
SPECIFICATIONS
BATTERY RUN TIME:
6 HR
BATTERY TYPE:
LI-ION BATTERY PACK APS2 (EXTERNAL) + LI-ION BATTERY PACK APS5 (INTERNAL)
BRAND:
PULSAR
BRAND FAMILY:
THERMION DUO
CA PROP 65:
YES
COLOR:
BLACK
CONDITION:
NEW
MATERIAL:
ALUMINUM ALLOY
OPTICS APP SUPPORT:
STREAM VISION 2
OPTICS CLASS:
RANGE FINDING
OPTICS FINISH:
MATTE
OPTICS MOUNTING SYSTEM:
30MM STANDARD RINGS (NOT INCLUDED)
OPTICS TYPE:
THERMAL RIFLE SCOPE
THERMAL DETECTOR TYPE:
UNCOOLED ASI
THERMAL DISPLAY / MONITOR TYPE:
AMOLED HD
THERMAL DISPLAY RESOLUTION:
1024 X 768
THERMAL EYE RELIEF:
50MM
THERMAL FOV DEG:
12.4 X 9.3 / 21.8 X 16.4 (THERMAL MINIMAL)
6.1 X 4.6 / 10.6 X 8 (DIGITAL MINIMAL):
THERMAL HUMAN DETECT RANGE:
1800 YDS
THERMAL IMAGING PALETTES:
8 COLOR
THERMAL MAGNIFICATION:
2-16X (THERMAL)
4-32X (DIGITAL):
THERMAL NETD:
<25 MK
THERMAL OBJECTIVE LENS (FOCAL LENGTH):
F50/1.0 (THERMAL)
F35/4.34 (DIGITAL):
THERMAL OPERATING TEMPERATURE:
-25 – +50 C
THERMAL OPTICS WI-FI:
2.4 GHZ / 5 GHZ
THERMAL PIP MODE:
YES
THERMAL POWER SUPPLY:
5V / 9V (USB TYPE-C
THERMAL RECORDING TYPE:
ON-BOARD VIDEO .MP4 / .JPG
THERMAL RETICLE:
10
THERMAL SENSOR FRAME (REFRESH) RATE:
50 HZ
THERMAL SENSOR PIXEL INTERVAL:
17 UM
THERMAL STORAGE:
16 GB
THERMAL VIDEO RECORDING RESOLUTION:
1024X768
WATERPROOF:
IPX-7
WEIGHT:
2.1 LBS
DESCRIPTION

For many hunters the Thermion Duo DXP is the only option for an optical riflescope at any time of the day and in any weather conditions. This thermal imaging riflescope, the Thermion Duo DXP, is based on the best solutions and components used in the development of Pulsar optics to ensure good handling of the challenges of night hunting. Full darkness, rain and fog will not prevent the Thermion Duo DXP from locating a beast and revealing its trophy qualities. The 4K resolution digital channel gives the full colours of day hunting.

The daytime digital channel clearly draws objects at distances of 10 meters and over. Using the Thermion Duo DXP as a daytime riflescope is always simple and convenient as the lens does not require focusing. The 4K-resolution CMOS sensor provides exemplary detail and identification of objects across the entire range of magnifications. Day hunting is not only comfortable, but also high-tech when using the Thermion Duo DXP. A full-colour image peculiar to classic daytime optics is combined with extreme digital functionality. At any time, the hunter can record an image, change the reticle pattern and colour, or connect the riflescope to a smartphone.

One cartridge and the Freeze software function are enough to zero in both optical channels at a selected distance. After the ranging shot, the riflescope takes a photo of the target, and the thermal imaging and digital channel reticles are set at the point of impact of the bullet. The Thermion Duo DXP can be zeroed using the base magnification or the zoom, while the click value decreases in proportion to zoom – with maximum magnification the click value is less than 0.1 MOA. The aiming point is stable in the full magnification range.

A high-sensitivity European-made sensor with < 25 mK NETD captures minimal temperature differences when observing in low temperature contrast conditions, or in rain or fog. The 640 x 480-pixel resolution ensures reliable identification of the target, high-quality visualization of important anatomical features of the animal plus minute details of the surrounding landscape. The sensor's large size gives the Thermion Duo DXP a wide field of view for comfortable and informative observation of both static and dynamic scenes.

The potential of the high-sensitivity sensor is fully revealed in a thermal imaging channel by the high-aperture F50/1.0 germanium lens. The thermal imaging channel ensures maximum detection efficiency for the hunter in any weather conditions at any time of day.

The Thermion Duo implements modern algorithms to reach a new level of image detailing, clarity and contrast. The thermal imaging channel, using a wide range of halftones, has the capability to render complex scenes with evenly emitting low-contrast objects, such as the sky, grass or water surfaces. The enhanced detail and software that sharpens objects at different distances, renders a highly informative thermal image. Manually increasing the sensitivity of the thermal imaging sensor allows you to improve the quality of detection of the animal if observation conditions deteriorate. A smoothing filter and brightness and contrast settings ensure comfort for prolonged observation times. The daytime channel gives ideal image perception in both sunny and cloudy conditions.

Manually increasing the sensitivity of the thermal imaging sensor allows you to improve the quality of detection of the animal if observation conditions deteriorate. A smoothing filter and brightness and contrast settings ensure comfort for prolonged observation times. The daytime channel gives ideal image perception in both sunny and cloudy conditions.

California Proposition 65 WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
