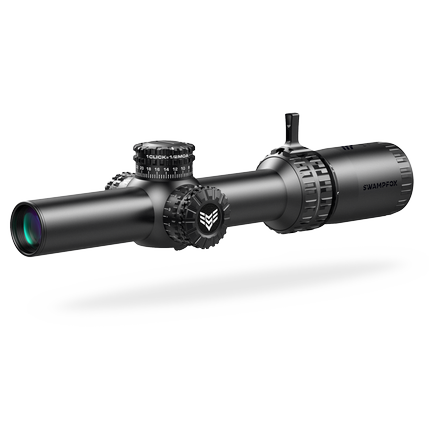

Swampfox Arrowhead LPVO Series Rifle Scope 1-10x24 30mm SFP Green IR MIL Black

ITEM NUMBER:

IQARH11024GL

UPC:

889157001562

BRAND:

Swampfox Optics

MFG PRODUCT #:

ARH11024-GL

SPECIFICATIONS

BATTERY TYPE:

CR2032

BRAND:

SWAMPFOX OPTICS

BRAND FAMILY:

ARROWHEAD LPVO

CA PROP 65:

YES

COLOR:

BLACK

CONDITION:

NEW

OPTICS BRIGHTNESS:

12 SETTINGS

OPTICS CLASS:

VARIABLE

OPTICS DIOPTER ADJ:

+/- 2

OPTICS ELEVATION ADJUSTMENT:

100 MOA

OPTICS EXIT PUPIL:

8.0-2.33MM

OPTICS EYE RELIEF:

3.46-3.54"

OPTICS FIELD OF VIEW @100YDS:

115.6-11.5 FT

OPTICS FOCAL PLANE:

SFP

OPTICS FOGPROOF:

YES

OPTICS ILLUMINATED RETICLE:

12 SETTINGS

OPTICS INCREMENTAL ADJUSTMENT:

1/2 MOA OR 0.1 MIL (RETICLE DEPENDENT)

OPTICS LENGTH:

10.91"

OPTICS LENS COATING:

FULLY MULTI-COATED

OPTICS OBJECTIVE:

OPTICS PARALLAX ADJUSTMENT:

100 YDS

OPTICS POWER MAGNIFICATION:

1-10X

OPTICS POWER RANGE:

1-10X

OPTICS RETICLE:

MOA

OPTICS SHOCKPROOF:

RESISTANT TO 1100G

OPTICS THROW LEVER:

YES

OPTICS TRAVEL PER ROTATION:

60 CLICKS/ 30 MOA

OPTICS TUBE DIAMETER:

30MM

OPTICS TURRET TYPE:

PUSH/PULL LOCKING WITH ZERO RESET

OPTICS TYPE:

RIFLE SCOPE

OPTICS WINDAGE ADJUSTMENT:

100 MOA

WARRANTY:

MFG 30 DAY LIMITED

WATERPROOF:

IPX-7

WEIGHT:

20.36 OZ

DESCRIPTION

The Swampfox Arrowhead is their flagship LPVO (low power variable optic) series that exceeds all requirements for end-user applications. Every Arrowhead comes with push/pull locking turrets to ensure accuracy and prevent unintentional adjustments. Arrowhead also features a brighter sight picture, expansive field of view, and excellent resolution. Offered in three second focal plane reticles: Guerrilla Dot BDC Long, Guerrilla Dot MOA Long, and Guerrilla Dot MIL, each with 12 red or green illumination settings. The Arrowhead is an excellent choice for both close quarters and long-distance engagements.

GUERRILLA DOT MIL LONG RETICLE :

The Guerrilla Dot MIL Long is available in all of our magnification ranges, and, like the MOA, it is compatible with a variety of calibers. This option is their first partially illuminated LPVO reticle, offering a more reflex-style reticle at 1x while still maintaining the 10 MIL tree for long-range holds.

Features :

Arrowhead was designed for demanding situations where you may not have access to tools for adjustments. The push/pull turret locking system allows for fast and accurate adjustments without tools. MOA reticles have a 0.5 MOA adjustment per click, while MIL reticles have a 0.1 MIL adjustment per click.

Arrowhead's dual LED emitters provide bright, daylight-level illumination for the etched reticle. Arrowhead features 12 illumination settings, with intermittent off settings to extend battery life and reduce wear on the adjustment turret. Also included are 2 illumination settings optimized for low light and compatible with NVG (night vision goggles) devices.

The quality of the glass is what sets LPVOs apart, and Arrowhead does not disappoint. Its advanced optical engineering provides a wider field of view and brighter sight picture. The lens is treated with anti-reflection, anti-fog, anti-scratch, and hydrophobic coatings for a tough and durable build.

The zero-reset feature allows for on-the-fly adjustments. To use this feature, set your desired zero and use a tool or coin to remove the locking bolt on the turret. Then adjust the turret to reflect your new zero and reattach the locking bolt.

IN THE BOX

Throw Lever Wrench for throw lever
Flip Up Lens Caps
Scope Cloth
Battery Product Manual
Reticle Manual
