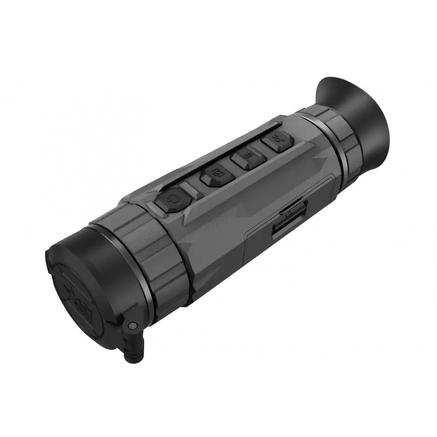

AGM Sidewinder TM35-384 Thermal Monocular 20mK 12 Micron 384x288 50 Hz

ITEM NUMBER:
AX3142451005SI31
UPC:
810027770127
BRAND:
AGM
MFG PRODUCT #:
3142451005SI31
SPECIFICATIONS
BATTERY COUNT:
1
BATTERY RUN TIME:
7 HR
BATTERY TYPE:
18650 RECHARGEABLE
BRAND:
AGM
BRAND FAMILY:
SIDEWINDER
CA PROP 65:
YES
COLOR:
BLACK
CONDITION:
NEW
OPTICS LENGTH:
7.4"
OPTICS TYPE:
THERMAL MONOCULAR
THERMAL APERTURE:
F1:0
THERMAL DETECTOR TYPE:
VANADIUM OXIDE UNCOOLED FOCAL PLANE ARRAY
THERMAL DIGITAL ZOOM:
1X 2X 4X 8X
THERMAL DIOPTER ADJ:
YES
THERMAL DISPLAY / MONITOR TYPE:
OLED
THERMAL DISPLAY RESOLUTION:
384 X 288
THERMAL FLAT FIELD CORRECTION:
AUTO / MANUAL / EXTERNAL CORRECTION
THERMAL FOV DEG:
7.5° × 5.6°
THERMAL HUMAN DETECT RANGE:
1800 YDS
THERMAL IMAGING PALETTES:
WHITE BLACK RED HOT FUSION
THERMAL MAGNIFICATION:
3-24X
THERMAL NETD:
<20 MK
THERMAL OBJECTIVE LENS (FOCAL LENGTH):
35MM
THERMAL OPERATING TEMPERATURE:
-30°C TO +55°C (-22°F TO +131°F)
THERMAL OPTICS WI-FI:
YES
THERMAL POWER SUPPLY:
5 VDC/2 A 1.75 W
THERMAL RESPONSE WAVEBAND:
8UM TO 14UM
THERMAL SENSOR FRAME (REFRESH) RATE:
50 HZ
THERMAL SENSOR PIXEL INTERVAL:
12 UM
THERMAL SNAPSHOT CAPTURE:
YES
THERMAL STANDBY MODE:
YES
THERMAL STORAGE:
64 GB
THERMAL TEMP SPOT TRACKING:
YES
THERMAL VIDEO RECORDING RESOLUTION:
YES
WARRANTY:
MFG 5 YEAR
WATERPROOF:
IP67
WEIGHT:
1.1 LB
DESCRIPTION

The Sidewinder is AGM's premium handheld observational thermal monocular series. All models come equipped with either a 384×288 twelve micron infrared detector and a 1024×768 OLED display, for improved color rendering. The Sidewinder thermal sensors also come equipped with the Most sensitive temperature ratings in its class, coming in at sub-20 millikelvin across the entire product family. Other improvements over the Taipan monoculars include a more robust body/housing and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions. The Sidewinders built-in 64 GB memory also sits at the top of its class on the market, with advanced software supporting both video recording and image capturing. The primary uses for these thermal monoculars include, but are not limited to: hunting, law enforcement, search-and-rescue, personal security, conservation, anti-poaching, camping, hiking and different marine applications.

California Proposition 65 WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
