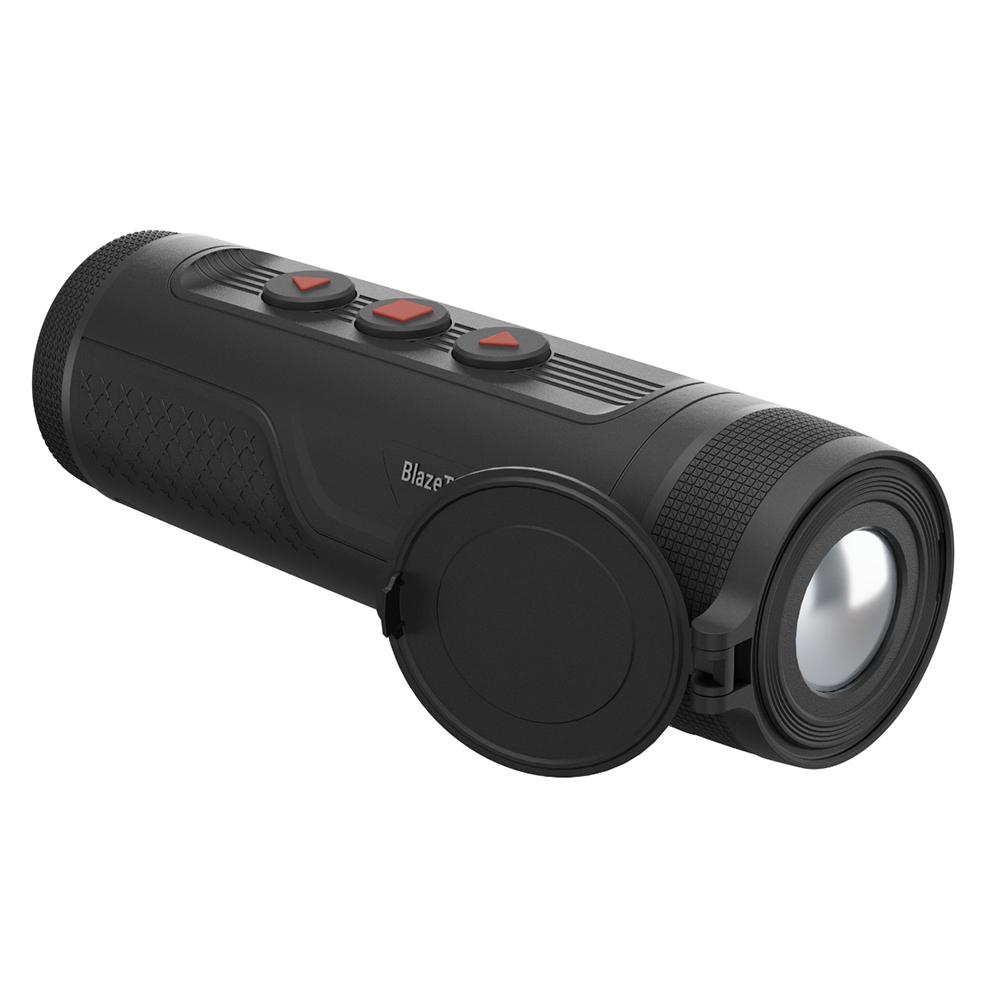

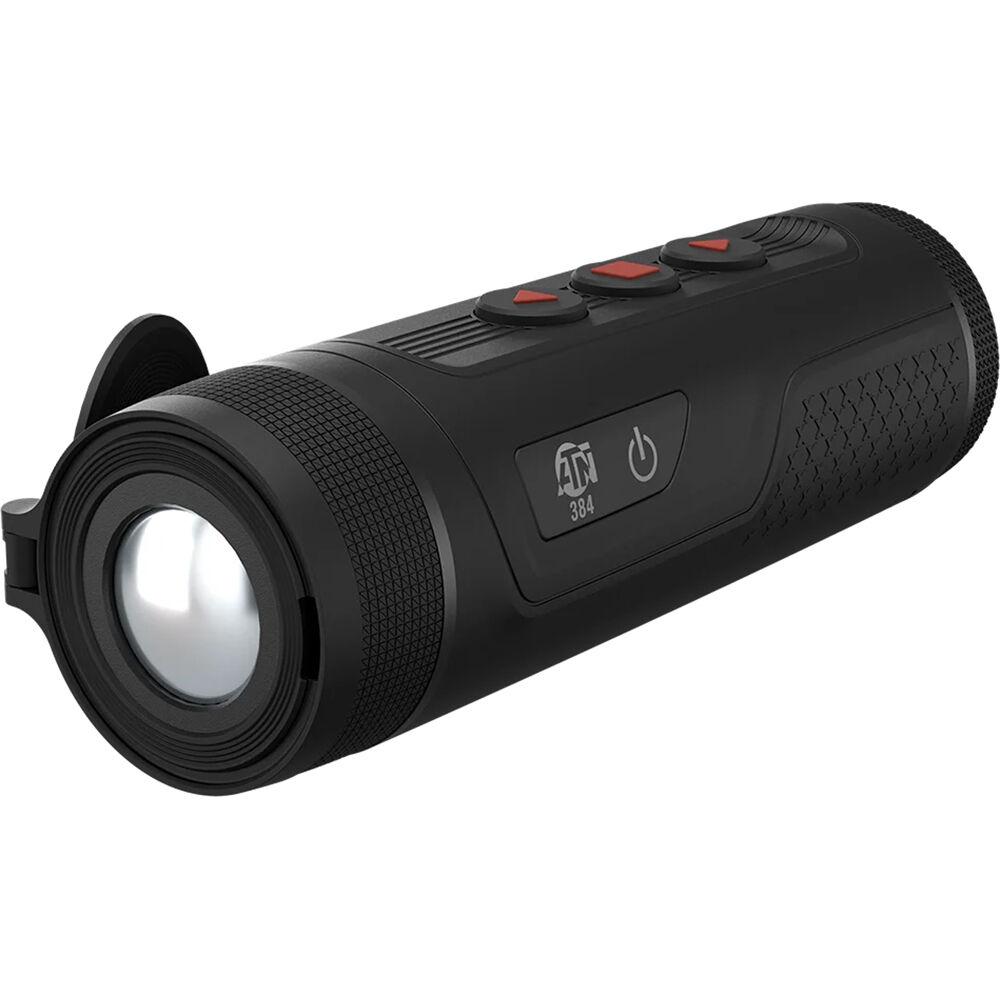

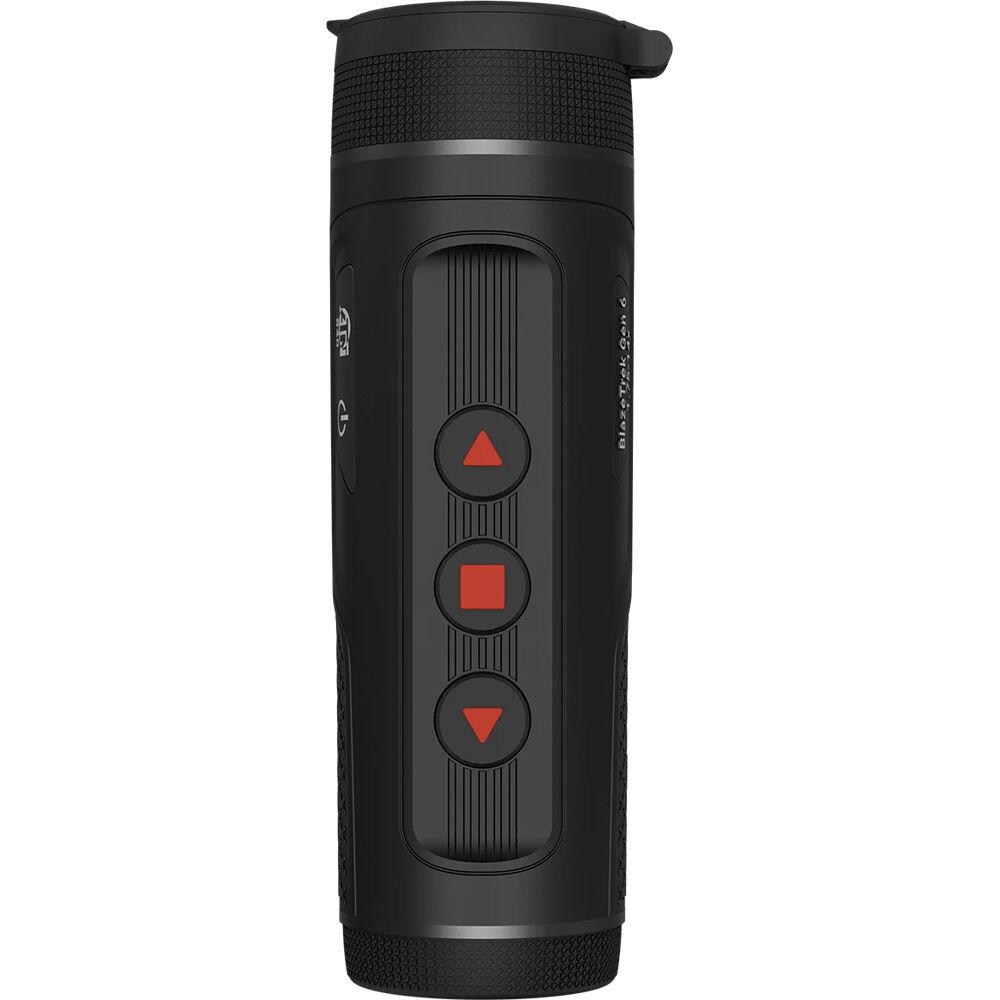

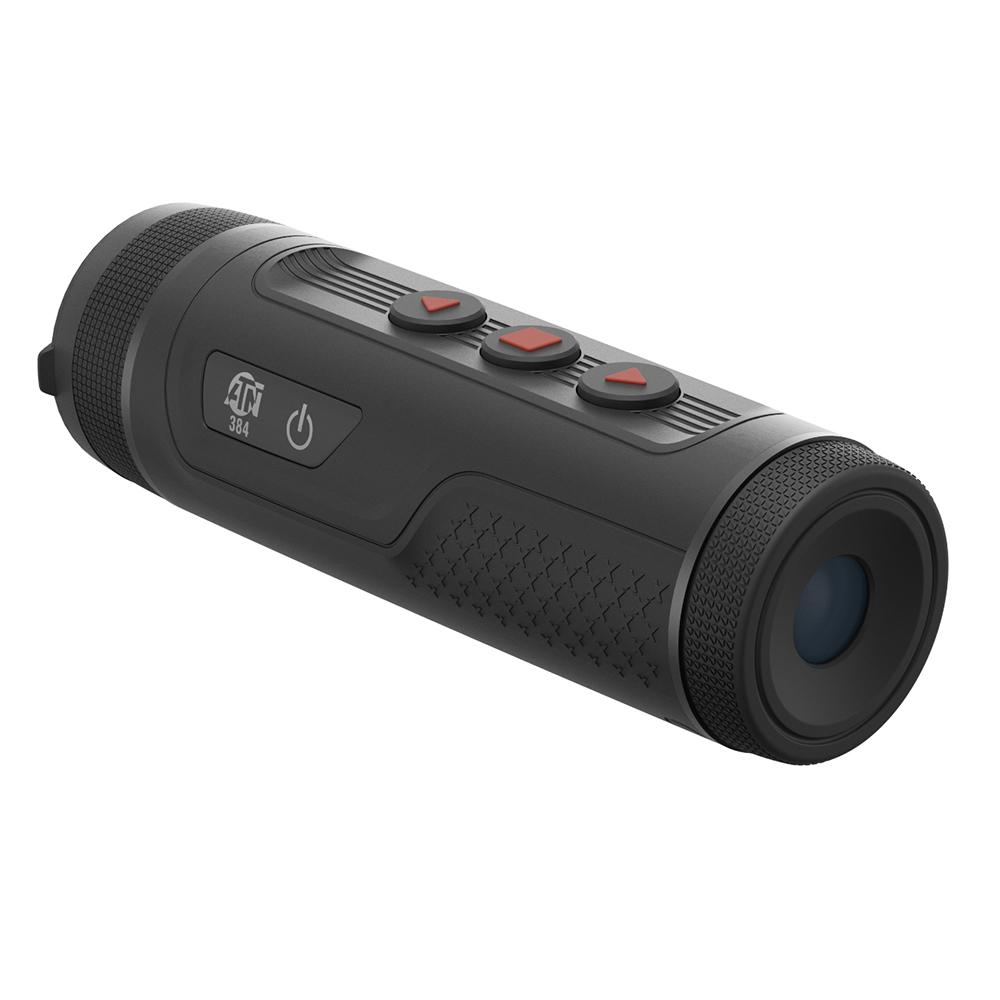

ATN BlazeTrek 6 325 Thermal Monocular 384x288

ITEM NUMBER:

ASTIMNBLT325G6

UPC:

0658175479673

BRAND:

ATN

MFG PRODUCT #:

TIMNBLT325G6

SPECIFICATIONS

BATTERY COUNT:

BATTERY RUN TIME:

8 HR

BATTERY TYPE:

RECHARGEABLE

BRAND:

ATN

BRAND FAMILY:

BLAZE TREK

CA PROP 65:

YES

COLOR:

BLACK

CONDITION:

NEW

COUNTRY OF ORIGIN:

USA

MATERIAL:

POLYMER

MICROPHONE:

YES

OPTICS ACTIVATION MODES:

MANUAL ON/OFF

OPTICS APP SUPPORT:

ATN CONNECT 6 APP

OPTICS CLASS:

THERMAL IMAGING

OPTICS FINISH:

MATTE

OPTICS LENGTH:

6.2"

OPTICS MOUNTING SYSTEM:

NOT INCLUDED

OPTICS OBJECTIVE:

OPTICS SHOCKPROOF:

YES

OPTICS TYPE:

THERMAL MONOCULAR

THERMAL BLUETOOTH:

YES

THERMAL BORESIGHT ADJ:

DIGITAL CONTROLLED

THERMAL DETECTOR TYPE:

12UM VOX UNCOOLED FOCAL PLANE ARRAY

THERMAL DIGITAL ZOOM:

1X 2X 4X 8X

THERMAL DISPLAY / MONITOR TYPE:

OLED

THERMAL DISPLAY RESOLUTION:

800 X 600

THERMAL EYE RELIEF:

15MM

THERMAL FLAT FIELD CORRECTION:

AUTO / SEMI-AUTO / MANUAL

THERMAL HUMAN DETECT RANGE:

1300 YDS

THERMAL IMAGING PALETTES:

WHITE BLACK GREEN HOT IRON RED ALARM SEPIA

THERMAL MAGNIFICATION:

2.8-22X

THERMAL MULTI-LANGUAGE MENU:

YES

THERMAL NETD:

<18MK

THERMAL OBJECTIVE LENS (FOCAL LENGTH):

25MM

THERMAL OPERATING TEMPERATURE:

-30°C TO +55°C (-22°F TO +131°F)

THERMAL OPTICS WI-FI:

YES

THERMAL PIP MODE:

YES

THERMAL POWER SUPPLY:

USB-C EXTERNAL

THERMAL RANGEFINDER:

LASER

THERMAL RECORDING TYPE:

ON-BOARD VIDEO AND AUDIO

THERMAL RESPONSE WAVEBAND:

8UM TO 14UM

THERMAL SENSOR FRAME (REFRESH) RATE:

50 HZ

THERMAL SENSOR PIXEL INTERVAL:

12 UM

THERMAL SENSOR RESOLUTION:

384 X 288

THERMAL SNAPSHOT CAPTURE:

YES

THERMAL STANDBY MODE:

YES

THERMAL STORAGE:

32 GB

THERMAL TEMP SPOT TRACKING:

YES

WARRANTY:

MFG 5 YEAR LIMITED

WATERPROOF:

IP67

WEIGHT:

11.3 OZ

DESCRIPTION

The advanced thermal sensor offers resolutions of 384x288 and 640x512 (50 Hz), with a 12 μm pixel size and an exceptional NETD rating of <18mK, enhancing sensitivity to temperature variations for improved image clarity.

Select from six color palettes to customize your viewing experience: White Hot, Black Hot, Iron Red, Alarm, Green Hot, & Sepia.

Easily fits in a pocket for convenient portability, allowing you to take it anywhere you go.

Adjust the monocular for different users using the diopter adjustment wheel, ensuring a clear and sharp image for each viewer.

Built-in rechargeable battery with up to 8 hours of operation time and external power supply option.
