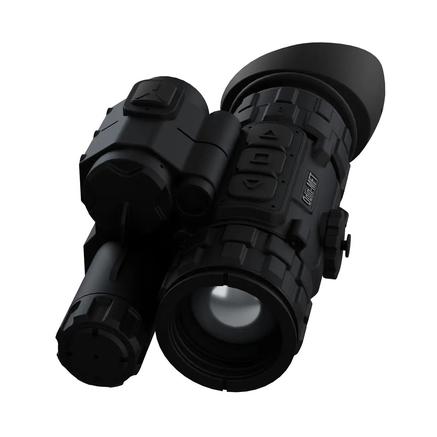

ATN Odin 6 Multi-Functional Thermal Optic 640×480 Black
ITEM NUMBER:
ASTIMFOD6625
UPC:
658175872344
BRAND:
ATN
MFG PRODUCT #:
TIMFOD6625
SPECIFICATIONS
BATTERY COUNT:
2
BATTERY RUN TIME:
8 HR
BATTERY TYPE:
18650 RECHARGEABLE (BUILT-IN) / 1 CR123
BRAND:
ATN
BRAND FAMILY:
ODIN MFT 640
CA PROP 65:
YES
COLOR:
BLACK
CONDITION:
NEW
MATERIAL:
MAGNESIUM ALLOY
OPTICS CLASS:
THERMAL IMAGING
OPTICS MOUNTING SYSTEM:
WILCOX NVG SHOE INTERFACES / PICATINNY (MIL-STD-1913) RAIL MOUNT
OPTICS OBJECTIVE:
25
OPTICS TYPE:
DAY/NIGHT/THERMAL RIFLESCOPE
THERMAL CORE:
ATN SHARPIR AI
THERMAL DETECTOR TYPE:
12UM VOX UNCOOLED FOCAL PLANE ARRAY
THERMAL DIGITAL ZOOM:
1X 2X 4X 8X
THERMAL DIOPTER ADJ:
-3/-+3
THERMAL DISPLAY RESOLUTION:
1280 X 1024
THERMAL EYE RELIEF:
UNLIMITED
THERMAL FOV DEG:
17.5° X 13.1°
THERMAL HUMAN DETECT RANGE:
1700 YDS
THERMAL IMAGING PALETTES:
MULTIPLE COLORS
THERMAL MAGNIFICATION:
1-8X
THERMAL NETD:
<15MK
THERMAL OBJECTIVE LENS (FOCAL LENGTH):
25MM F/1.0
THERMAL POWER SUPPLY:
5 VDC/2 A USB TYPE-C INTERFACE
THERMAL RANGEFINDER:
NO
THERMAL RETICLE:
BALLISTIC
THERMAL SENSOR FRAME (REFRESH) RATE:
50 HZ
THERMAL SENSOR PIXEL INTERVAL:
12 UM
THERMAL SENSOR RESOLUTION:
640 X 480
THERMAL STORAGE:
64 GB
WATERPROOF:
IP67
WEIGHT:
0.79 LBS (WITHOUT BATTERY OR EYECUP)
DESCRIPTION
The ATN Odin 6 Multi-Functional 1-8x25mm 640x480px Thermal Rifle Scope (also known as the Odin 6 MFT 640) is a highly versatile 6th-generation thermal optic designed to serve in four different operational roles: as a handheld monocular, weapon sight, clip-on device, or helmet-mounted optic. At the heart of the device is a 640x480 resolution thermal sensor paired with a 12μm pixel pitch and a fast 50Hz refresh rate, delivering clear, smooth thermal imagery.
- Features :
- Magnification: 1-8x with smooth 1x, 2x, 4x, and 8x digital zoom
- Objective Lens: 25mm germanium lens
- Thermal Sensitivity: ≤15 mK NETD for incredibly high contrast and detail
- Detection Range: Up to 1,700 meters
- Field of View: 17.5° × 13.2°
- Display: 1280x1024 OLED micro-display
- Image Processing: ATN SharpIR AI for enhanced clarity
- Storage: 64 GB internal storage
- Recording: Integrated video and audio recording with Recoil Activated Video (RAV)
Battery: Dual battery compatibility supporting (1) 18650 rechargeable or (1) CR123A, offering 8+ hours of continuous run-time - Durability: IP67 water-resistant and built with a rugged magnesium alloy housing
- Weight: 0.79 lbs (approx. 0.88 lbs depending on the LRF model
California Proposition 65 WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
